JN5148/001,515

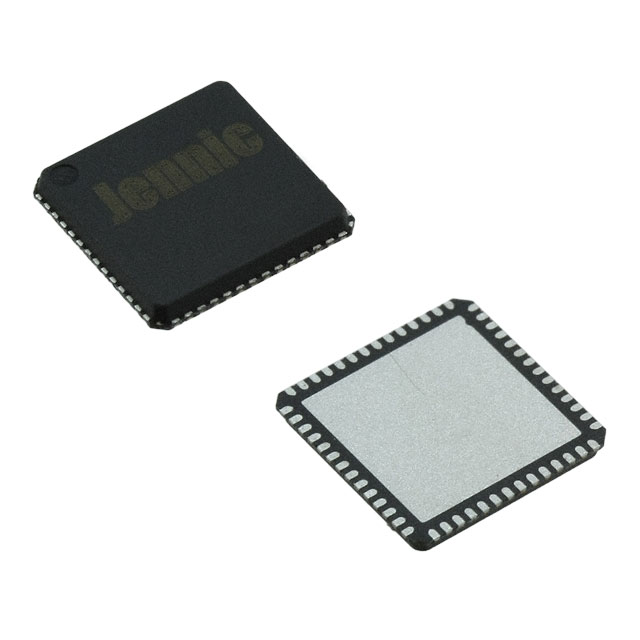

IC RF TXRX+MCU 802.15.4 56VFQFNManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More
The NXP USA Inc. JN5148-001-515 is a versatile IEEE 802.15.4 compliant RF transceiver with an integrated microcontroller. This component operates in the 2.4GHz band, supporting Zigbee® protocols with a maximum data rate of 667kbps. Key specifications include a transmit power of 2.75dBm and a receive sensitivity of -96.5dBm. The device features 128kB ROM and 128kB RAM for embedded applications. It offers 21 GPIO pins and multiple serial interfaces including I2C, JTAG, SPI, and UART for flexible system integration. The JN5148-001-515 is housed in a 56-VFQFN package and operates within a voltage supply range of 2V to 3.6V, with an operating temperature range of -40°C to 85°C. This component is commonly utilized in smart home automation, industrial control, and wireless sensor network applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN |
| Sensitivity | -96.5dBm |
| Frequency | 2.4GHz |
| Memory Size | 128kB ROM, 128kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2V ~ 3.6V |
| Power - Output | 2.75dBm |
| Protocol | Zigbee® |
| Current - Receiving | 17.5mA |
| Data Rate (Max) | 667kbps |
| Current - Transmitting | 15mA |
| GPIO | 21 |
| Modulation | O-QPSK |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | I2C, JTAG, SPI, UART |
| Programmable | Not Verified |
