JN5139/Z01,515
IC RF TXRX+MCU 802.15.4 56VFQFNManufacturer: NXP USA Inc.
Categories: RF Transceiver ICs
Quality Control: Learn More

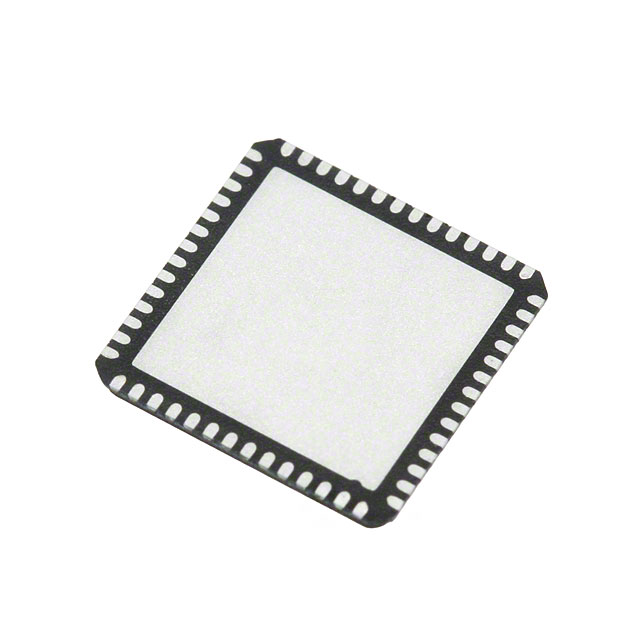

NXP USA Inc. JN5139-Z01-515 is a highly integrated wireless microcontroller for 2.4GHz IEEE 802.15.4 applications. This device combines a robust 802.15.4 compliant RF transceiver with a powerful 32-bit RISC processor, offering 192kB ROM and 96kB RAM for flexible application development. Key specifications include a maximum data rate of 1Mbps, transmit power of 3dBm, and a receive sensitivity of -97dBm. It operates from a supply voltage range of 2.2V to 3.6V and features a low receiving current of 37mA and transmitting current of 38mA. The JN5139-Z01-515 supports Zigbee® protocol and provides multiple serial interfaces, including SPI and UART. With 21 GPIO pins, it is suitable for a wide array of applications in smart home, industrial automation, and IoT device development. This component is supplied in a 56-VFQFN package on tape and reel. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-VFQFN |
| Sensitivity | -97dBm |
| Frequency | 2.4GHz |
| Memory Size | 192kB ROM, 96kB RAM |
| Type | TxRx + MCU |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.2V ~ 3.6V |
| Power - Output | 3dBm |
| Protocol | Zigbee® |
| Current - Receiving | 37mA |
| Data Rate (Max) | 1Mbps |
| Current - Transmitting | 38mA |
| GPIO | 21 |
| Modulation | - |
| RF Family/Standard | 802.15.4 |
| Serial Interfaces | SPI, UART |
| Programmable | Not Verified |
