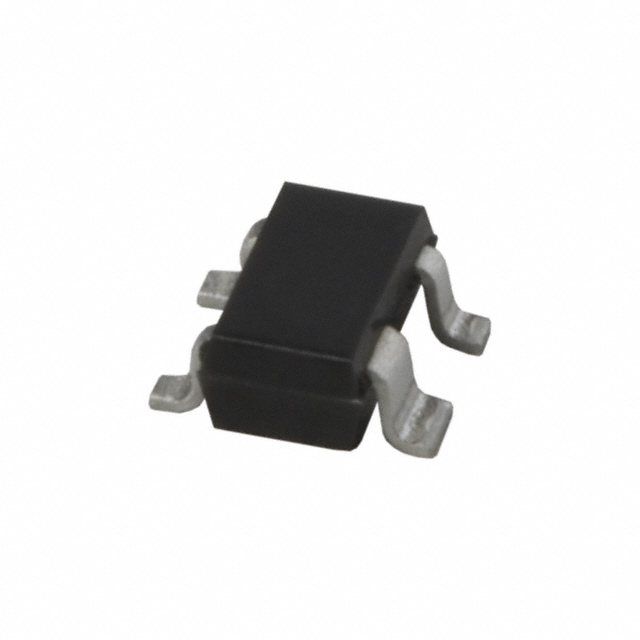

BF1118W,115
IC RF SWITCH 1GHZ 4SOManufacturer: NXP USA Inc.
Categories: RF Switches
Quality Control: Learn More
NXP USA Inc. RF Switch BF1118W-115 is a general-purpose RF switch IC designed for operation up to 1 GHz. This component features a 50 Ohm impedance, ensuring efficient signal transfer in RF applications. With a minimum isolation of 30 dB and a maximum insertion loss of 2.5 dB at 1 GHz, the BF1118W-115 provides robust performance for signal routing. The device is housed in a 4-SO package, specifically a SOT-343 Reverse Pinning configuration, suitable for surface mount assembly. Its typical applications include wireless infrastructure, consumer electronics, and automotive systems where reliable RF signal management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-343 Reverse Pinning |
| Impedance | 50Ohm |
| Mounting Type | Surface Mount |
| Circuit | - |
| RF Type | General Purpose |
| Operating Temperature | - |
| Voltage - Supply | - |
| Insertion Loss | 2.5dB (max) |
| Frequency Range | 0Hz ~ 1GHz |
| Topology | - |
| P1dB | - |
| Test Frequency | 1GHz |
| Isolation | 30dB (min) |
| Supplier Device Package | 4-SO |
| IIP3 | - |
Request a Quote
Clients Also Buy

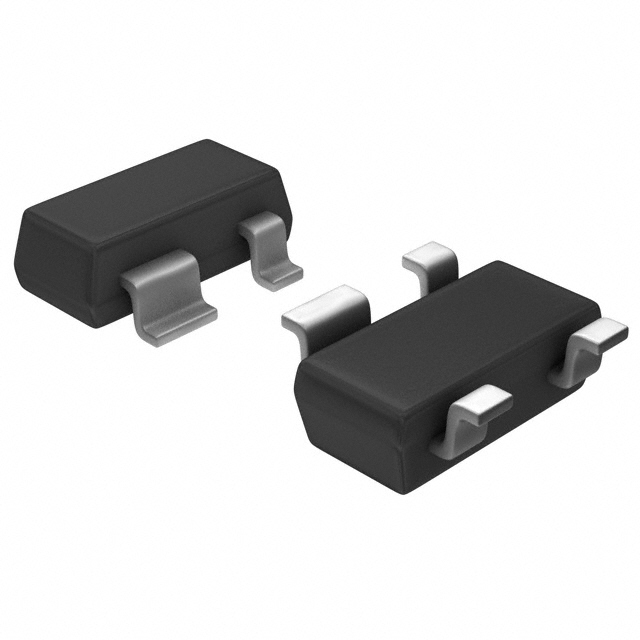

BF1118,215
