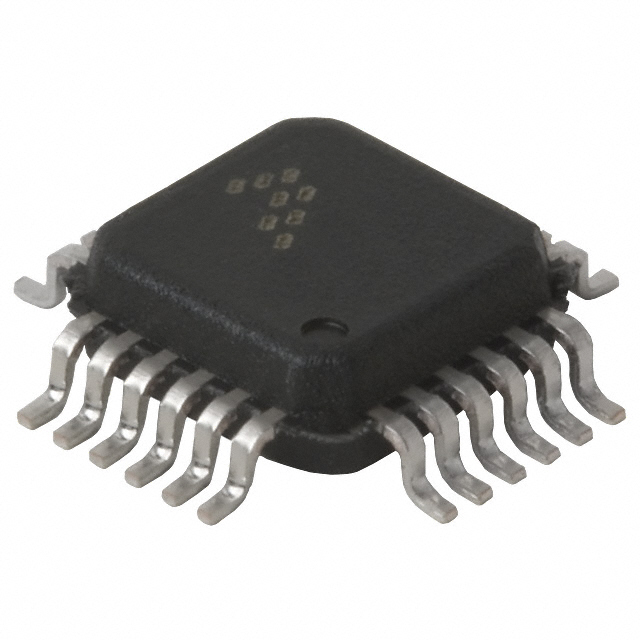

MC33592FTAE
RF RCVR OOK 315MHZ/434MHZ 24LQFPManufacturer: NXP USA Inc.
Categories: RF Receivers
Quality Control: Learn More
NXP USA Inc. MC33592FTAE is a highly integrated RF receiver operating at 315MHz and 434MHz. This device supports On-Off Keying (OOK) modulation and achieves a sensitivity of -105dBm with a maximum data rate of 11kBaud. Designed for efficient operation, it draws a typical receiving current of 5.7mA and operates within a voltage range of 1.9V to 3.6V. The MC33592FTAE features a PCB, surface mount antenna connector and is housed in a compact 24-LQFP (4x4) package. Its robust performance and low power consumption make it suitable for general data transfer applications across various industries. This component is supplied in trays.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-LQFP |
| Sensitivity | -105dBm |
| Mounting Type | Surface Mount |
| Frequency | 315MHz, 434MHz |
| Memory Size | - |
| Modulation or Protocol | OOK |
| Data Interface | PCB, Surface Mount |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 1.9V ~ 3.6V |
| Applications | General Data Transfer |
| Current - Receiving | 5.7mA |
| Data Rate (Max) | 11kBaud |
| Antenna Connector | PCB, Surface Mount |
| Supplier Device Package | 24-LQFP (4x4) |
