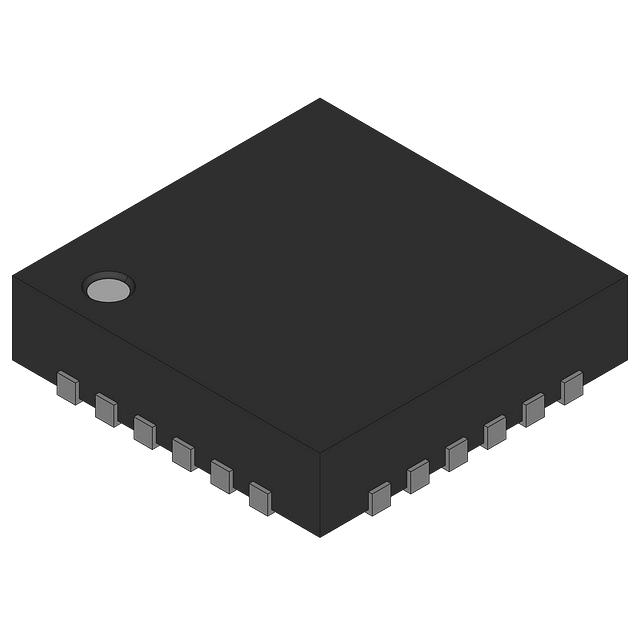

BGX7101HN/1118
TRANSMITTER IQ MODULATOR 24HVQFNManufacturer: NXP USA Inc.
Categories: RF Modulators
Quality Control: Learn More
RF Modulator IC 400MHz ~ 4GHz 24-VFQFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Function | Upconverter |
| Voltage - Supply | 4.75V ~ 5.25V |
| P1dB | 12dBm |
| Test Frequency | 5MHz |
| LO Frequency | 400MHz ~ 4GHz |
| RF Frequency | 400MHz ~ 4GHz |
| Output Power | 20dBm (Max) |
| Noise Floor | -158dBm/Hz |
| Supplier Device Package | 24-HVQFN (4x4) |
| Current - Supply | 188 mA |
