MRFG35010ANR5
RF MOSFET PHEMT FET 12V NI360Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

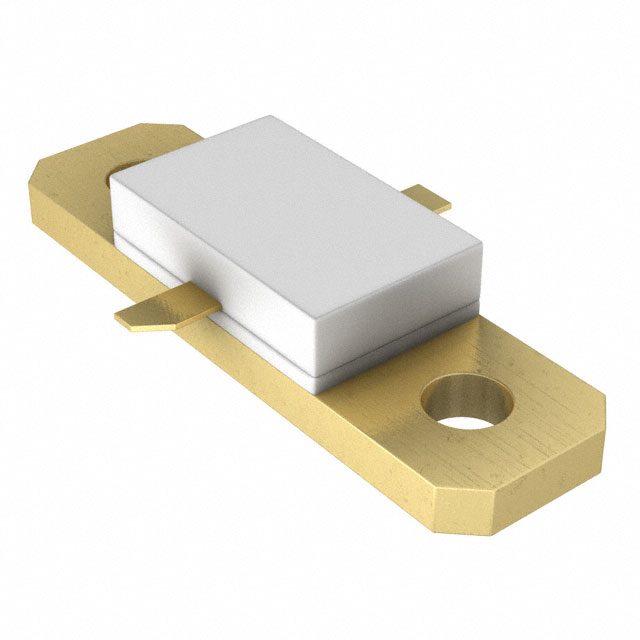

NXP USA Inc. MRFG35010ANR5 is a 1W RF Power MOSFET utilizing pHEMT FET technology. Operating at 12V test voltage, this device offers a 10dB gain at 3.55GHz with a 130mA test current. The NI-360HF package is supplied on a Tape & Reel (TR) for efficient assembly. This component is engineered for high-frequency applications, finding utility in wireless infrastructure and other demanding RF power amplification systems. Its robust design supports a 15V rated voltage, ensuring reliable performance in challenging environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-360HF |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 3.55GHz |
| Power - Output | 1W |
| Gain | 10dB |
| Technology | pHEMT FET |
| Noise Figure | - |
| Supplier Device Package | NI-360HF |
| Voltage - Rated | 15 V |
| Voltage - Test | 12 V |
| Current - Test | 130 mA |
