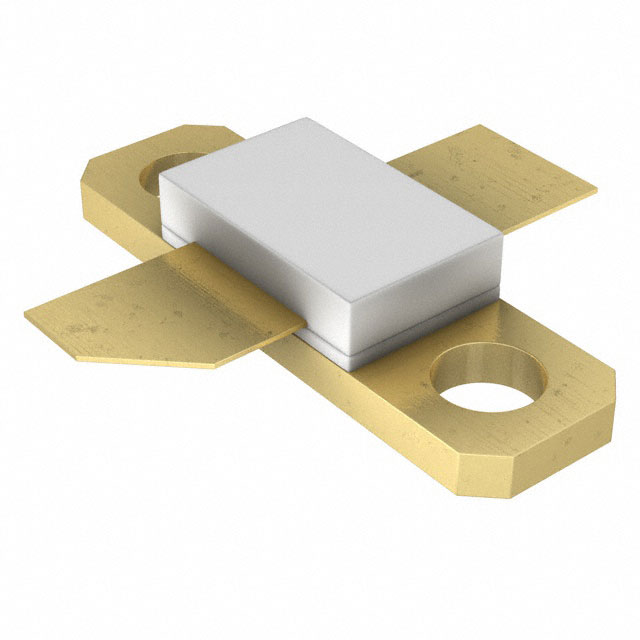

MRF9030LR5
RF MOSFET LDMOS 26V NI360Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. presents the MRF9030LR5, an RF power MOSFET utilizing advanced LDMOS technology. This component is designed for high-power RF applications, delivering 30W of output power at a frequency of 945MHz. It features a typical gain of 19dB and operates with a test voltage of 26V, while its rated voltage is 68V. The device is supplied in a NI-360 package, suitable for chassis mounting, and is available on tape and reel for efficient manufacturing processes. This RF MOSFET is a critical component in base station infrastructure, wireless infrastructure, and other high-frequency communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-360 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 945MHz |
| Power - Output | 30W |
| Gain | 19dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-360 |
| Voltage - Rated | 68 V |
| Voltage - Test | 26 V |
| Current - Test | 250 mA |
