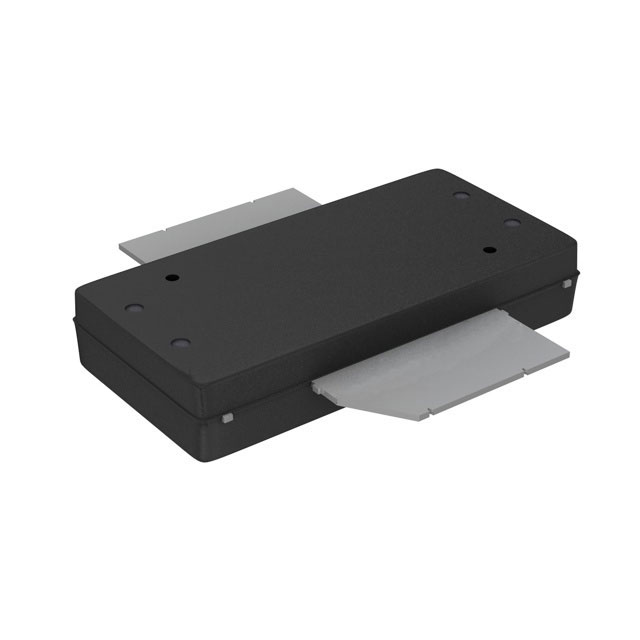

MRF8S7120NR3
RF MOSFET LDMOS 28V OM780-2Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MRF8S7120NR3 is a 70V LDMOS RF power transistor designed for high-frequency applications. This device features a 28V test voltage and a 600mA test current, delivering 32W of output power at 768MHz with a 19.2dB gain. Packaged in an OM-780-2 surface-mount configuration and supplied on tape and reel, the MRF8S7120NR3 is suitable for demanding RF power amplifier designs in the wireless infrastructure and industrial sectors. Its LDMOS technology ensures robust performance and efficiency in challenging operating environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | OM-780-2 |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 768MHz |
| Power - Output | 32W |
| Gain | 19.2dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | OM-780-2 |
| Voltage - Rated | 70 V |
| Voltage - Test | 28 V |
| Current - Test | 600 mA |
