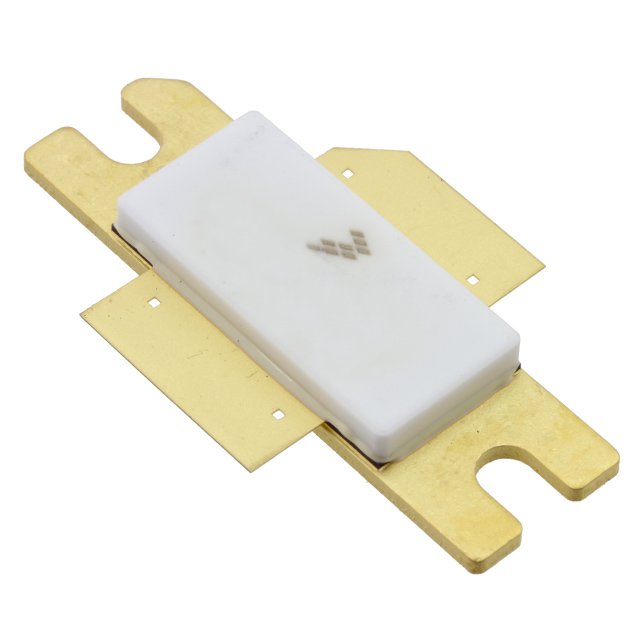

MRF6V12500HR3
RF MOSFET LDMOS 50V NI780Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MRF6V12500HR3 is a high-power RF MOSFET utilizing LDMOS technology. This component is designed for demanding RF power amplification applications. With a 50V test voltage and 500W output power capability, it delivers a nominal gain of 19.7dB at 1.03GHz. The device operates with a 200mA test current and features a 50V rated voltage, suitable for robust RF system designs. Packaged in the NI-780H-2L (SOT-957A) format for chassis mounting, and supplied on Tape & Reel (TR), this RF MOSFET is engineered for reliability in broadcast, industrial heating, and high-power communication infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-957A |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.03GHz |
| Power - Output | 500W |
| Gain | 19.7dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-780H-2L |
| Voltage - Rated | 110 V |
| Voltage - Test | 50 V |
| Current - Test | 200 mA |
