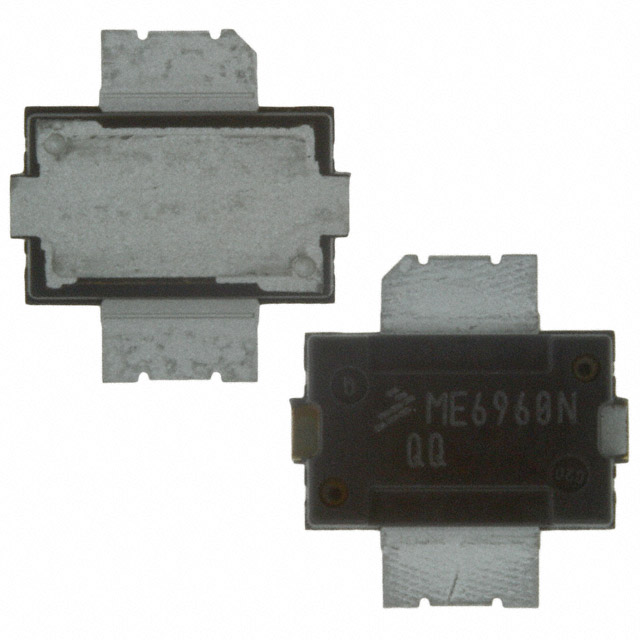

MRF6S9060MR1
RF MOSFET LDMOS 28V TO270-2Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MRF6S9060MR1 is an RF LDMOS transistor designed for high-power applications. This device operates at 880MHz, delivering a power output of 14W with a typical gain of 21.4dB at a test voltage of 28V and 450mA. The MRF6S9060MR1 features a robust 68V rated voltage and is housed in a TO-270-2 package, supplied on tape and reel for efficient automated assembly. Its LDMOS technology ensures excellent performance characteristics for demanding RF power amplifier designs across various wireless infrastructure and communication systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-270-2 |
| Current Rating (Amps) | - |
| Frequency | 880MHz |
| Power - Output | 14W |
| Gain | 21.4dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | TO-270-2 |
| Voltage - Rated | 68 V |
| Voltage - Test | 28 V |
| Current - Test | 450 mA |
