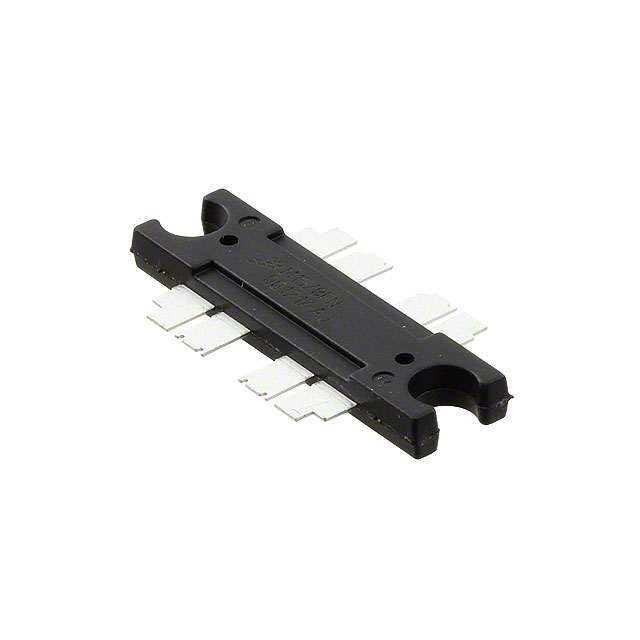

MRF1570FNT1
RF MOSFET LDMOS 12.5V TO272-8Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MRF1570FNT1 is a high-power RF MOSFET utilizing LDMOS technology. This component is designed for demanding RF applications, delivering 70W of output power at 470MHz with a 11.5dB gain. It operates with a 12.5V test voltage and is rated for up to 40V. The device features an 800mA current capability and is provided in a TO-272-8 package, suitable for chassis mounting. Its robust performance makes it ideal for use in broadcast, industrial, and communication systems requiring efficient power amplification. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-272-8 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 470MHz |
| Power - Output | 70W |
| Gain | 11.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | TO-272-8 |
| Voltage - Rated | 40 V |
| Voltage - Test | 12.5 V |
| Current - Test | 800 mA |
