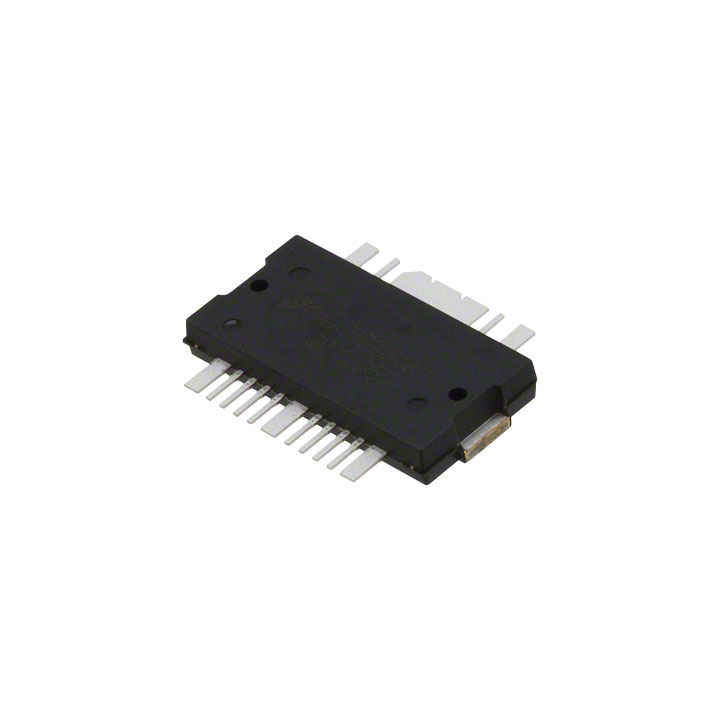

MMRF2005NR1
RF MOSFET LDMOS 28V TO270-16Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MMRF2005NR1 is an RF LDMOS transistor designed for high-frequency applications. This TO-270 WBL-16 packaged device operates at 28V test voltage and delivers 3.2W of output power at 940MHz. It exhibits a typical gain of 35.9dB with a test current of 106mA. The MMRF2005NR1 is characterized by its LDMOS technology, ensuring robust performance in demanding RF power amplification. It is commonly utilized in base station infrastructure and other wireless communication systems. The component is supplied on Tape & Reel (TR) in a TO-270-16 variant with flat leads, suitable for chassis mounting.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-270-16 Variant, Flat Leads |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 940MHz |
| Power - Output | 3.2W |
| Gain | 35.9dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | TO-270 WBL-16 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 106 mA |
