MMRF1318NR1
RF MOSFET LDMOS 50V TO270-4Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

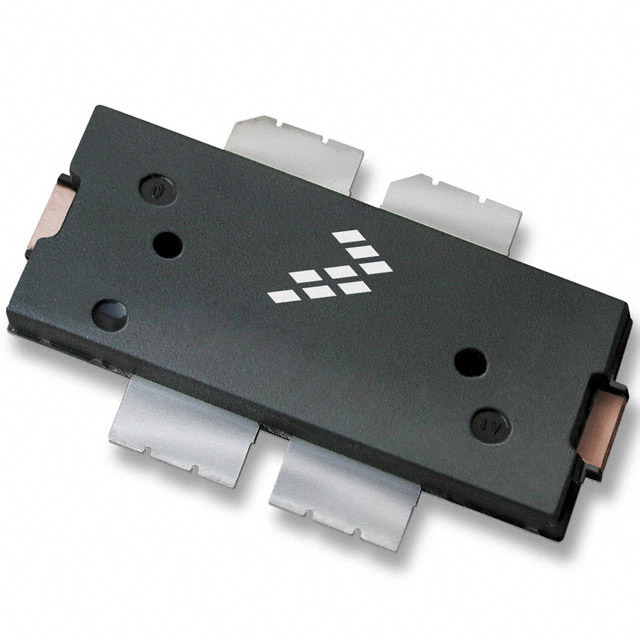

NXP USA Inc. MMRF1318NR1, an LDMOS RF power transistor, delivers robust performance for demanding applications. This TO-270 WB-4 packaged component operates at a test voltage of 50V, with a rated voltage of 110V, and a test current of 900 mA. Featuring a gain of 22dB and an output power of 300W at 450MHz, it is engineered for high-frequency power amplification. Its LDMOS technology ensures efficient operation in challenging RF environments. This device is commonly utilized in industrial, scientific, and medical (ISM) equipment, as well as in broadcast and communication infrastructure. The component is supplied on a Tape & Reel (TR) for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-270-4 |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 450MHz |
| Power - Output | 300W |
| Gain | 22dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | TO-270 WB-4 |
| Voltage - Rated | 110 V |
| Voltage - Test | 50 V |
| Current - Test | 900 mA |
