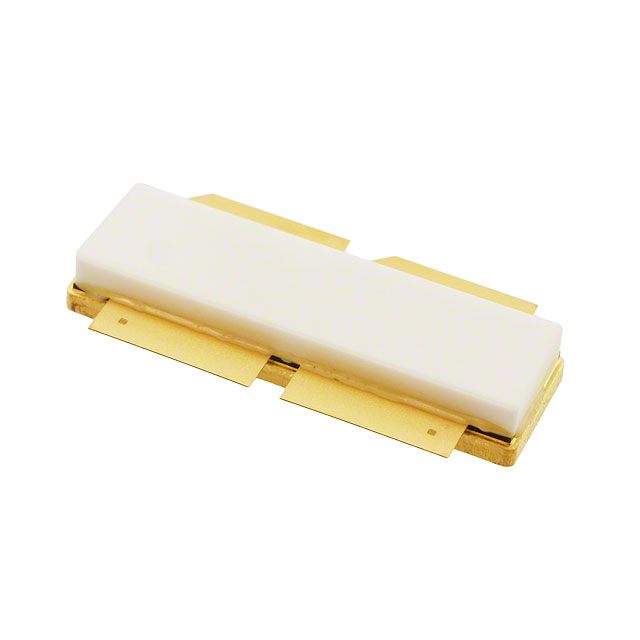

MMRF1314HSR5
RF MOSFET LDMOS 50V NI1230Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MMRF1314HSR5 is a 50V LDMOS RF power transistor designed for high-power applications. This device operates at a frequency of 1.4GHz, delivering a gain of 17.7dB and an output power of 1000W. The MMRF1314HSR5 utilizes LDMOS technology for robust performance in demanding RF power amplifier designs. It is supplied in a NI-1230-4S package, suitable for chassis mounting, and comes in Tape & Reel (TR) packaging. This component is commonly employed in base station infrastructure and other high-frequency power amplification scenarios.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-1230-4S |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.4GHz |
| Configuration | Dual |
| Power - Output | 1000W |
| Gain | 17.7dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-1230-4S |
| Voltage - Rated | 105 V |
| Voltage - Test | 50 V |
| Current - Test | 500 mA |
