MMRF1310HR5
RF MOSFET LDMOS 50V NI780Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

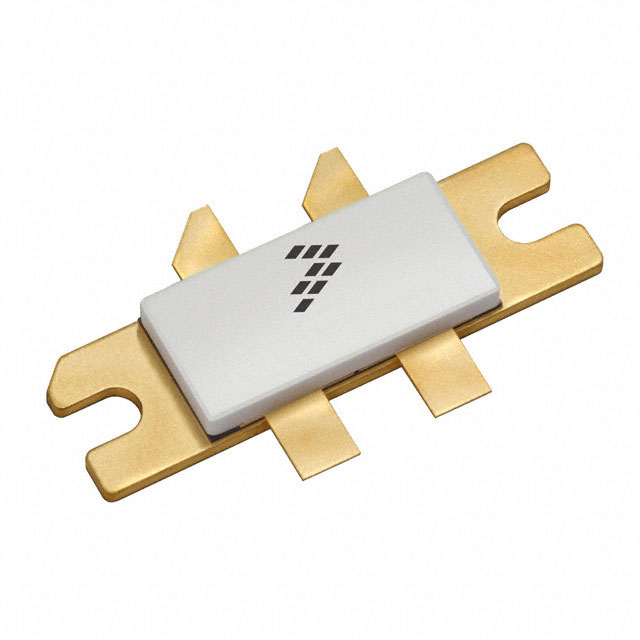

NXP USA Inc. MMRF1310HR5 is an LDMOS RF MOSFET designed for high-power applications. This component operates at a frequency of 230MHz, delivering an output power of 300W with a gain of 26.5dB. It is rated for a voltage of 133V, with a typical test voltage of 50V and a current rating of 100mA. The MMRF1310HR5 features a dual configuration and is housed in a NI-780-4 package, designed for chassis mounting. This device is commonly utilized in industrial, medical, and defense sectors for RF power amplification and transmission systems. The component is supplied on a Tape & Reel (TR) for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-780-4 |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 230MHz |
| Configuration | Dual |
| Power - Output | 300W |
| Gain | 26.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-780-4 |
| Voltage - Rated | 133 V |
| Voltage - Test | 50 V |
| Current - Test | 100 mA |
