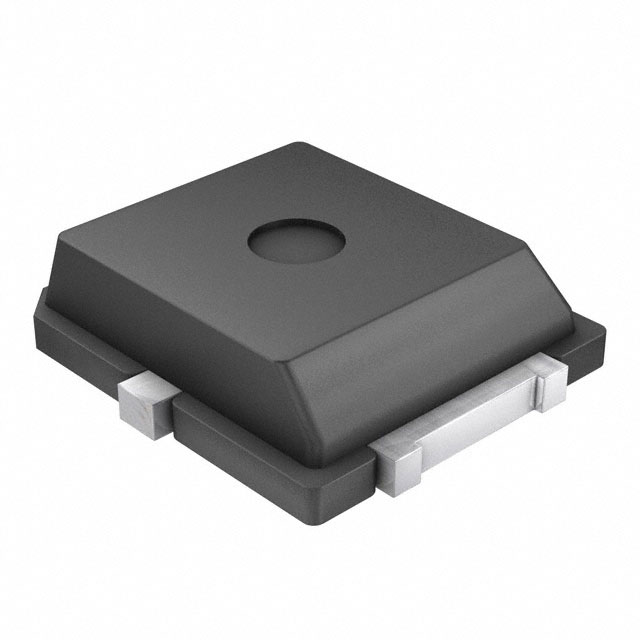

MMRF1021NT1
RF MOSFET LDMOS 7.5V PLD-1.5WManufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. MMRF1021NT1. This RF power transistor utilizes LDMOS technology, delivering 7.3W of output power at 870MHz with a typical gain of 15.2dB. It operates with a 7.5V test voltage and a 100mA test current, supporting a rated voltage of 30V. The device is housed in a PLD-1.5W package suitable for surface mounting and is supplied on tape and reel. This component is commonly found in base station infrastructure and other wireless communication applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | PLD-1.5W |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 870MHz |
| Power - Output | 7.3W |
| Gain | 15.2dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | PLD-1.5W |
| Voltage - Rated | 30 V |
| Voltage - Test | 7.5 V |
| Current - Test | 100 mA |
