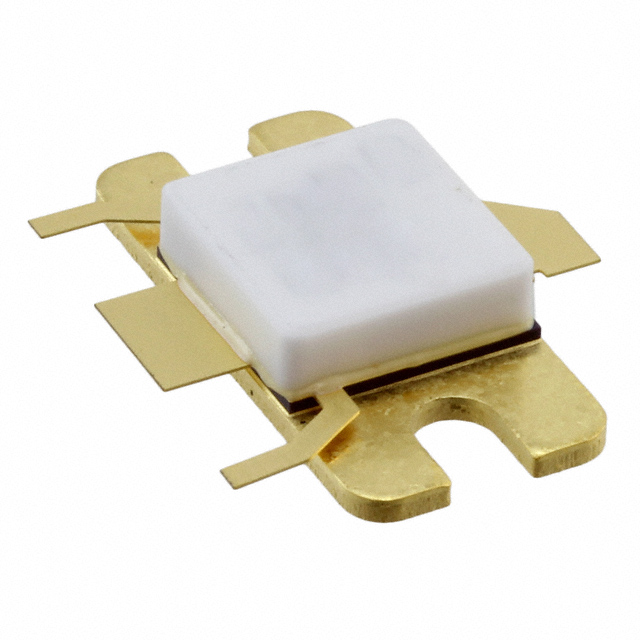

BLD6G22L-50,112
RF MOSFET LDMOS 28V CDFM4Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. BLD6G22L-50-112 is an RF power MOSFET utilizing LDMOS technology. This dual, common source device operates at a test voltage of 28V and features a rated voltage of 65V. With a test current of 170mA, it delivers 8W of output power at 2.14GHz with a gain of 14dB. The SOT-1130A package, also known as CDFM4, is designed for chassis mounting. This component is commonly employed in applications such as base station infrastructure and industrial heating.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | SOT-1130A |
| Current Rating (Amps) | 10.2A |
| Mounting Type | Chassis Mount |
| Frequency | 2.14GHz |
| Configuration | Dual, Common Source |
| Power - Output | 8W |
| Gain | 14dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | CDFM4 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 170 mA |
