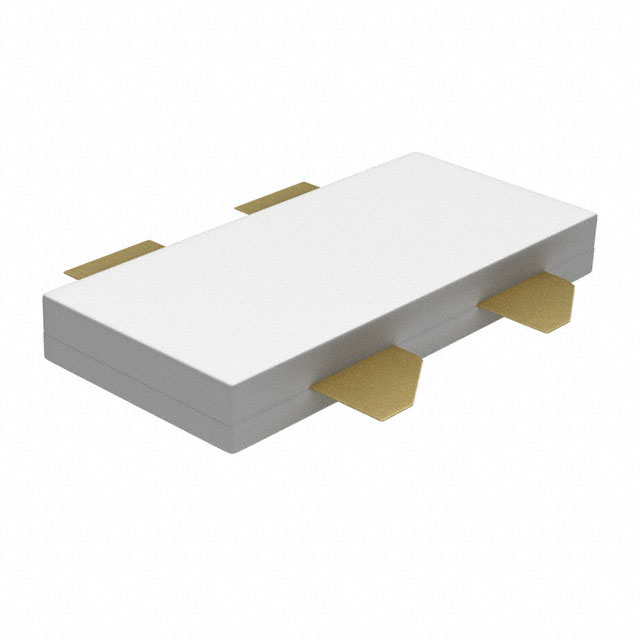

AFT20P140-4WNR3

RF MOSFET LDMOS 28V OM780-4

Quality Control: Learn More

NXP USA Inc. AFT20P140-4WNR3 is a high-performance RF LDMOS transistor designed for robust power amplification. Operating within the 1.88GHz to 1.91GHz frequency range, this device delivers a nominal output power of 24W with a gain of 17.8dB at a test voltage of 28V and a test current of 500mA. The transistor features a 65V voltage rating and is housed in the OM-780-4L package, suitable for surface mount applications. This component is commonly utilized in base station infrastructure and other demanding wireless communication systems. The AFT20P140-4WNR3 is supplied on tape and reel (TR).

Additional Information

Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)

Download Free CAD Model:

Technical Details:

Packaging	Tape & Reel (TR)
Package / Case	OM-780-4L
Current Rating (Amps)	-
Mounting Type	Surface Mount
Frequency	1.88GHz ~ 1.91GHz
Configuration	Dual
Power - Output	24W
Gain	17.8dB
Technology	LDMOS
Noise Figure	-
Supplier Device Package	OM-780-4L
Voltage - Rated	65 V
Voltage - Test	28 V
Current - Test	500 mA
