AFT18H356-24SR6
RF MOSFET 28V NI1230Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

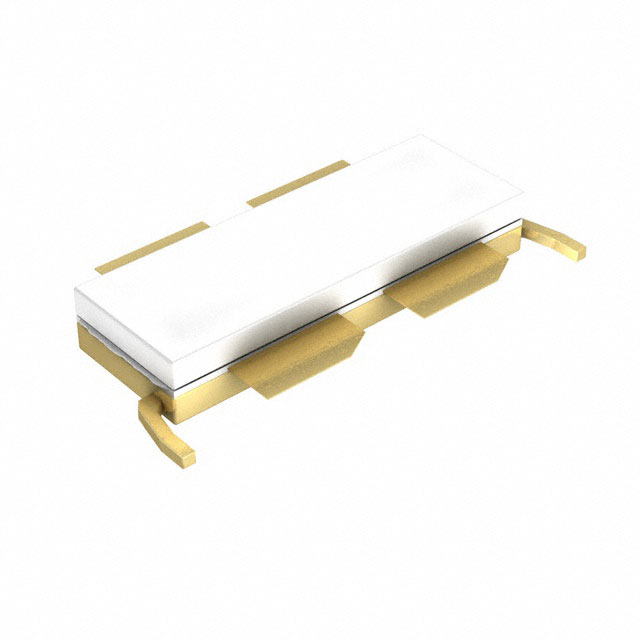

NXP USA Inc. RF MOSFET AFT18H356-24SR6 is a high-performance RF power transistor designed for demanding wireless applications. This NI-1230-4LS2L packaged device operates at a test voltage of 28V and delivers 63W of output power at 1.88GHz. Featuring a 15dB gain and a nominal current rating of 1.1A during testing, it is engineered for efficiency and reliability. The AFT18H356-24SR6 is suitable for use in base station infrastructure, industrial heating, and other high-power RF systems. It is supplied on a Tape & Reel (TR) for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-1230-4LS2L |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 1.88GHz |
| Configuration | - |
| Power - Output | 63W |
| Gain | 15dB |
| Technology | - |
| Noise Figure | - |
| Supplier Device Package | NI-1230-4LS2L |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 1.1 A |
