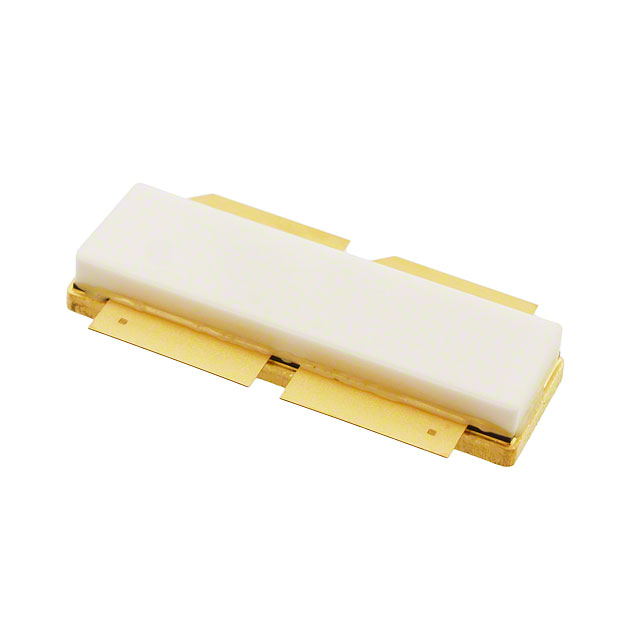

AFT09H310-03SR6
RF MOSFET LDMOS 28V NI1230Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. AFT09H310-03SR6 is a 28V LDMOS RF power transistor designed for high-performance RF applications. This device offers 56W of output power at 920MHz with a gain of 17.9dB. The AFT09H310-03SR6 utilizes LDMOS technology for enhanced ruggedness and efficiency. Its NI-1230S package is suitable for chassis mounting and is supplied on tape and reel for automated assembly. This component is commonly found in base station infrastructure, industrial heating, and broadcast transmitters. The tested operating voltage is 28V, with a rated voltage of 70V, and a test current of 680mA.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-1230S |
| Current Rating (Amps) | - |
| Mounting Type | Chassis Mount |
| Frequency | 920MHz |
| Power - Output | 56W |
| Gain | 17.9dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-1230S |
| Voltage - Rated | 70 V |
| Voltage - Test | 28 V |
| Current - Test | 680 mA |
