A3V26S004NT6
RF MOSFET LDMOS 48V 6DFNManufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More

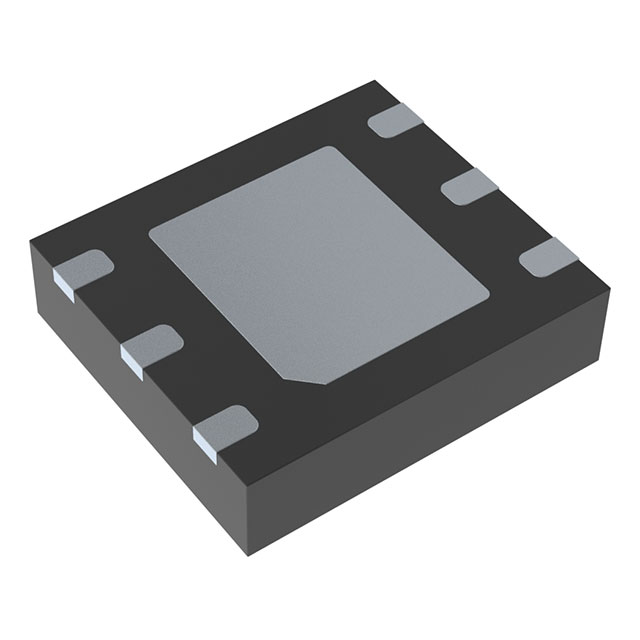

NXP USA Inc. RF MOSFET, part number A3V26S004NT6, is a 48V LDMOS device designed for high-frequency applications within the 2.496GHz to 2.69GHz range. This component delivers a typical gain of 23.3dB and an output power of 26dBm, with a tested current of 16mA. It is housed in a compact 6-PDFN (4x4.5) package, suitable for surface mount assembly and supplied on tape and reel. The device utilizes LDMOS technology, known for its performance in demanding RF environments. Common applications for this type of component include telecommunications infrastructure, radar systems, and industrial heating.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-LDFN Exposed Pad |
| Current Rating (Amps) | 10µA |
| Mounting Type | Surface Mount |
| Frequency | 2.496GHz ~ 2.69GHz |
| Power - Output | 26dBm |
| Gain | 23.3dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | 6-PDFN (4x4.5) |
| Voltage - Rated | 105 V |
| Voltage - Test | 48 V |
| Current - Test | 16 mA |
