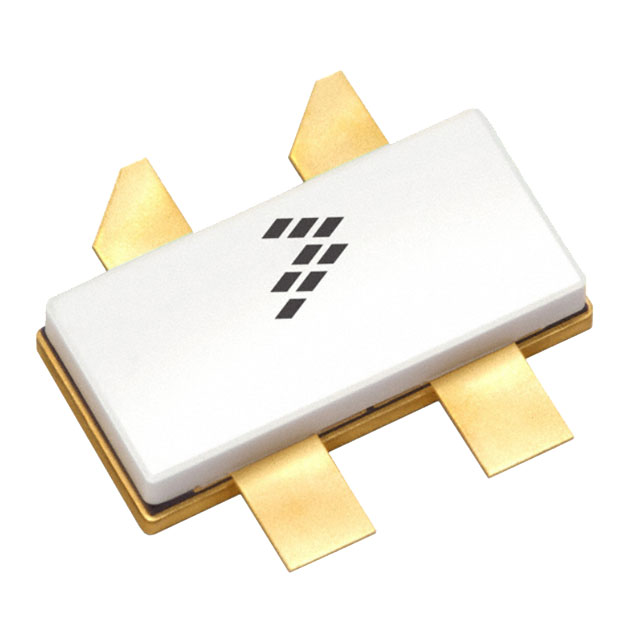

A2T07D160W04SR3
RF MOSFET LDMOS 28V NI780Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. A2T07D160W04SR3 is a 28V LDMOS RF power MOSFET designed for demanding applications. This device operates at 803MHz, delivering 30W of output power with a typical gain of 21.5dB. The NI-780S-4L package facilitates efficient surface mounting. Key parameters include a 450mA test current and a 70V rated voltage. This component is commonly employed in base station infrastructure and other wireless communication systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | NI-780S-4L |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 803MHz |
| Configuration | Dual |
| Power - Output | 30W |
| Gain | 21.5dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | NI-780S-4L |
| Voltage - Rated | 70 V |
| Voltage - Test | 28 V |
| Current - Test | 450 mA |
