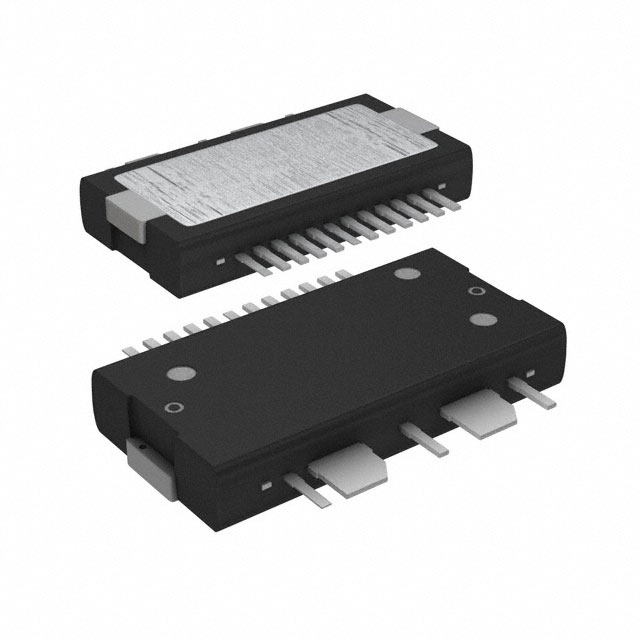

A2I25H060NR1
RF MOSFET LDMOS 28V TO270-17Manufacturer: NXP USA Inc.
Categories: RF FETs, MOSFETs
Quality Control: Learn More
NXP USA Inc. A2I25H060NR1 is a high-performance LDMOS RF power transistor designed for demanding applications. This TO-270WB-17 packaged component operates at 2.59 GHz with a 28 V test voltage, delivering 10.5 W of output power and 26.1 dB of gain. The 26 mA test current and 65 V nominal voltage rating contribute to its robust performance. This device is suitable for use in wireless infrastructure, broadcast, and radar systems. Packaged in a Tape & Reel (TR) format for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-270-17 Variant, Flat Leads |
| Current Rating (Amps) | - |
| Mounting Type | Surface Mount |
| Frequency | 2.59GHz |
| Configuration | Dual |
| Power - Output | 10.5W |
| Gain | 26.1dB |
| Technology | LDMOS |
| Noise Figure | - |
| Supplier Device Package | TO-270WB-17 |
| Voltage - Rated | 65 V |
| Voltage - Test | 28 V |
| Current - Test | 26 mA |
