TDA9801/V1,112
RF DEMODULATOR IC 20DIPManufacturer: NXP USA Inc.
Categories: RF Demodulators
Quality Control: Learn More

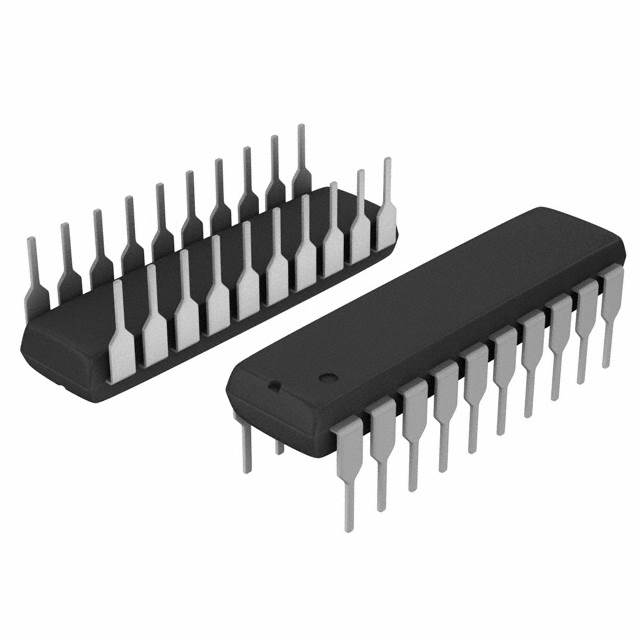

NXP USA Inc. TDA9801-V1-112 is a versatile RF Demodulator IC housed in a 20-DIP (0.300", 7.62mm) package. This through-hole component is designed for demanding applications requiring efficient signal demodulation. With a typical supply current of 70 mA and operating voltage range of 4.5V to 9.9V, the TDA9801-V1-112 is suitable for integration into various electronic systems. Its primary function as a demodulator and detector makes it a critical element in audio and video processing, telecommunications infrastructure, and automotive electronics. The device is supplied in tube packaging, ensuring ease of handling and integration into automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 20-DIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Function | Demodulator, Detector |
| Voltage - Supply | 4.5V ~ 9.9V |
| Gain | - |
| Noise Figure | - |
| P1dB | - |
| LO Frequency | - |
| RF Frequency | - |
| Supplier Device Package | 20-DIP |
| Current - Supply | 70 mA |
