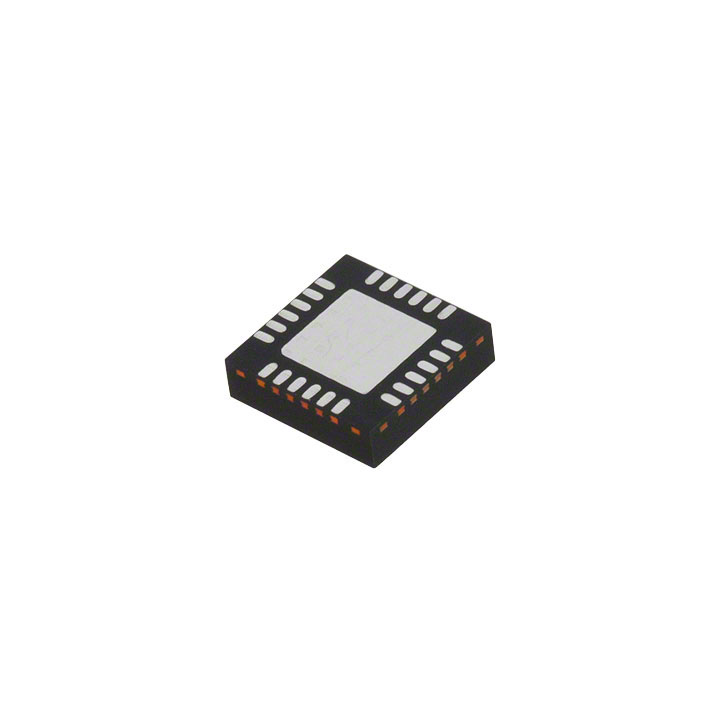

MMRF2006NT1
IC AMP W-CDMA 1.8-2.17GHZ 24QFNManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. MMRF2006NT1 is a high-performance RF amplifier IC designed for W-CDMA applications. This component operates across a frequency range of 1.8GHz to 2.17GHz, offering a significant gain of 36dB. The amplifier delivers a power output of 43dBm at P1dB, ensuring robust signal amplification. It is packaged in a 24-PQFN (8x8) surface mount configuration, supplied on tape and reel for streamlined automated assembly. The device requires a supply voltage between 26V and 32V, with a typical current draw of 230mA. This RF amplifier is suitable for demanding applications in the wireless infrastructure and mobile communications sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-PowerQFN |
| Mounting Type | Surface Mount |
| Frequency | 1.8GHz ~ 2.17GHz |
| RF Type | W-CDMA |
| Voltage - Supply | 26V ~ 32V |
| Gain | 36dB |
| Current - Supply | 230mA |
| Noise Figure | - |
| P1dB | 43dBm |
| Test Frequency | 1.8GHz ~ 2.17GHz |
| Supplier Device Package | 24-PQFN (8x8) |
