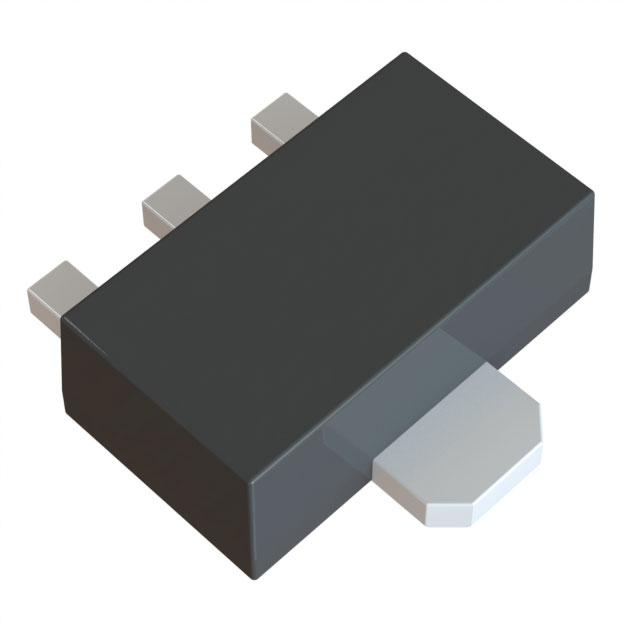

MMG38151BT1
IC RF AMP GPS 0HZ-6GHZ SOT89AManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. MMG38151BT1 is a high-performance RF amplifier designed for general-purpose applications across a broad frequency range of 0Hz to 6GHz. This surface-mount component, packaged in a SOT-89A (TO-243AA), offers a typical gain of 19.4dB at a test frequency of 0Hz to 6GHz, with a P1dB of 18.4dBm. The amplifier exhibits a noise figure of 3.2dB, making it suitable for demanding wireless infrastructure, radar systems, and test and measurement equipment. It operates with a supply voltage of 7V and draws a current of 250mA. The MMG38151BT1 is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Frequency | 0Hz ~ 6GHz |
| RF Type | General Purpose |
| Voltage - Supply | 7V |
| Gain | 19.4dB |
| Current - Supply | 250mA |
| Noise Figure | 3.2dB |
| P1dB | 18.4dBm |
| Test Frequency | 0Hz ~ 6GHz |
| Supplier Device Package | SOT-89A |
