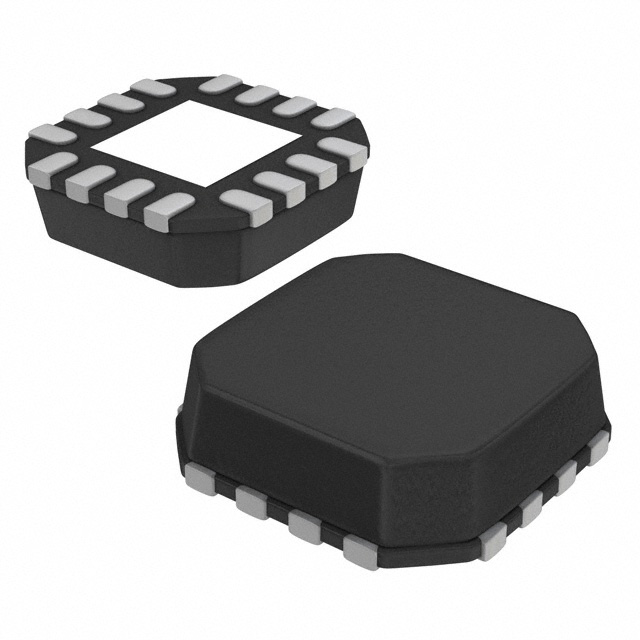

MMG3006NT1
IC AMP CELL 400MHZ-2.4GHZ 16QFNManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The NXP USA Inc. MMG3006NT1 is a high-performance RF amplifier designed for demanding wireless applications. This surface-mount component operates across a broad frequency range of 400MHz to 2.4GHz, making it suitable for cellular, PCS, PHS, and WLL infrastructure. Key specifications include a typical gain of 17.5dB and a P1dB output power of 33dBm, measured at 900MHz. The amplifier exhibits a noise figure of 6.6dB and requires a 5V supply voltage, drawing approximately 850mA of current. Housed in a compact 16-QFN (4x4) exposed pad package, the MMG3006NT1 is supplied on tape and reel for automated assembly. Its robust performance characteristics cater to the needs of advanced radio frequency system design.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-VQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 2.4GHz |
| RF Type | Cellular, PCS, PHS, WLL |
| Voltage - Supply | 5V |
| Gain | 17.5dB |
| Current - Supply | 850mA |
| Noise Figure | 6.6dB |
| P1dB | 33dBm |
| Test Frequency | 900MHz |
| Supplier Device Package | 16-QFN (4x4) |
