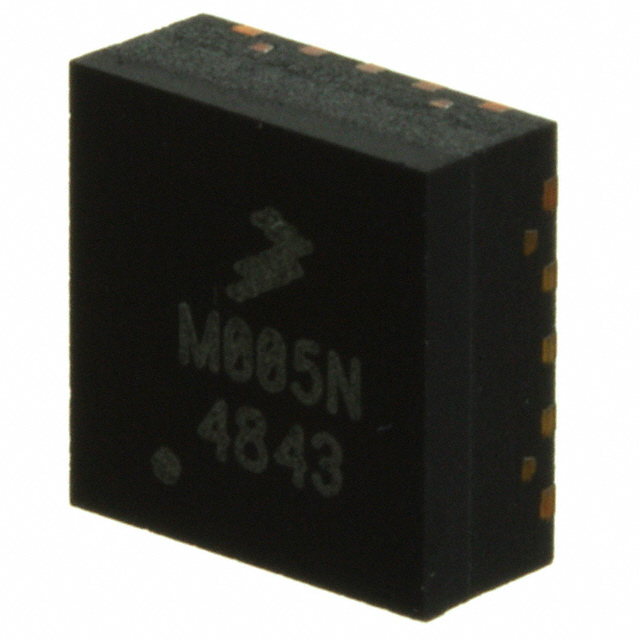

MMG3005NT1
IC AMP CELL 800MHZ-2.2GHZ 16QFNManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. MMG3005NT1 is a high-performance RF power amplifier designed for cellular, PCS, PHS, and WLL applications. Operating across a broad frequency range of 800MHz to 2.2GHz, this device delivers a typical gain of 15dB at 2.14GHz with a P1dB output power of 30dBm. The MMG3005NT1 features a low noise figure of 5dB, ensuring excellent signal integrity. It operates from a 5V supply with a current draw of 480mA. The component is housed in a compact 16-PQFN (5x5) package with an exposed pad for enhanced thermal management and is supplied on tape and reel. This amplifier is suitable for demanding wireless infrastructure and mobile device designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-QFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 800MHz ~ 2.2GHz |
| RF Type | Cellular, PCS, PHS, WLL |
| Voltage - Supply | 5V |
| Gain | 15dB |
| Current - Supply | 480mA |
| Noise Figure | 5dB |
| P1dB | 30dBm |
| Test Frequency | 2.14GHz |
| Supplier Device Package | 16-PQFN (5x5) |
