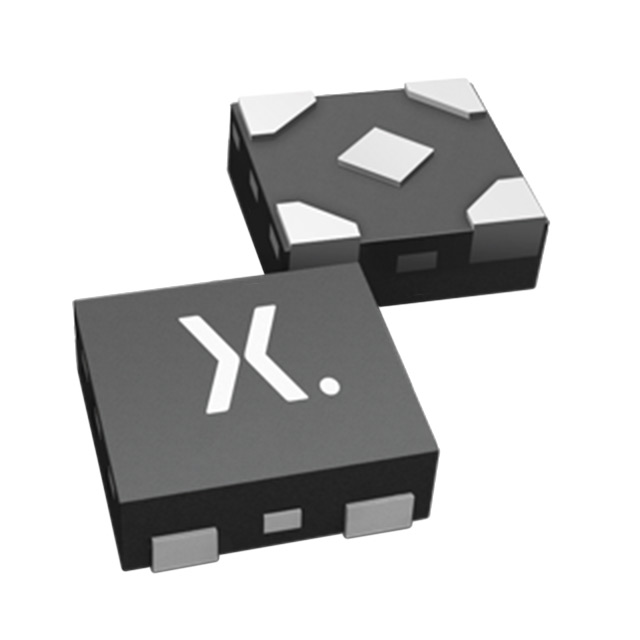

BGU8309Z
IC AMP GALI 1.559-1.61GHZ 5X2SONManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. BGU8309Z is a high-performance RF amplifier designed for GNSS applications within the 1.559GHz to 1.61GHz frequency range, specifically supporting Galileo, GLONASS, and GPS systems. This component offers a typical gain of 19dB and a low noise figure of 0.7dB to 0.8dB, crucial for signal integrity in satellite navigation. Operating from a supply voltage of 1.5V to 3.1V, it draws a minimal supply current of 3.6mA or 4.6mA. The device features a P1dB compression point of -9dBm. Packaged in a compact 5-X2SON (0.8x0.8) with an exposed pad, it is supplied on tape and reel for efficient surface mounting processes. This amplifier is well-suited for integration into portable navigation devices, automotive tracking systems, and other precision location technology.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1.559GHz ~ 1.61GHz |
| RF Type | Galileo, GLONASS, GPS |
| Voltage - Supply | 1.5V ~ 3.1V |
| Gain | 19dB |
| Current - Supply | 3.6mA, 4.6mA |
| Noise Figure | 0.7dB, 0.8dB |
| P1dB | -9dBm |
| Test Frequency | - |
| Supplier Device Package | 5-X2SON (0.8x0.8) |
