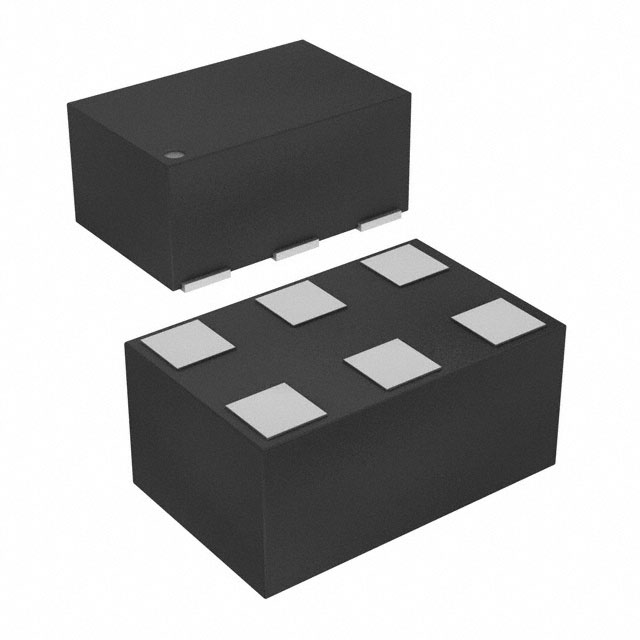

BGU8103X
IC AMP GALI 1.559-1.61GHZ 6XSONManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. BGU8103X is a high-performance RF amplifier IC from the BGU8103 series, specifically engineered for satellite navigation applications. This component operates within the 1.559GHz to 1.61GHz frequency range, covering Galileo, GLONASS, and GPS bands. It delivers a typical gain of 17.5dB at its test frequency, with a remarkably low noise figure of 0.8dB, ensuring optimal signal reception in challenging environments. The device operates from a supply voltage of 1.5V to 3.1V, drawing a minimal current of 1.2mA. The BGU8103X is housed in a compact 6-XSON (1.1x0.7) surface-mount package, supplied on tape and reel. Its robust design makes it suitable for integration into automotive navigation systems, portable tracking devices, and other precision positioning equipment.
Additional Information
Series: BGU8103RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN |
| Mounting Type | Surface Mount |
| Frequency | 1.559GHz ~ 1.61GHz |
| RF Type | Galileo, GLONASS, GPS |
| Voltage - Supply | 1.5V ~ 3.1V |
| Gain | 17.5dB |
| Current - Supply | 1.2mA |
| Noise Figure | 0.8dB |
| P1dB | - |
| Test Frequency | - |
| Supplier Device Package | 6-XSON (1.1x0.7) |
