BGU7063,518
IC AMP CELL 1.92-1.98GHZ 16HLQFNManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. BGU7063-518 is a high-performance RF amplifier IC designed for cellular applications. This component operates within the 1.92GHz to 1.98GHz frequency range, offering a substantial gain of 37.5dB at a test frequency of 1.95GHz. The noise figure is a low 0.9dB, ensuring signal integrity. Featuring a P1dB of -12.5dBm, the amplifier is suitable for demanding RF front-end designs.
The BGU7063-518 is supplied in a 16-HLQFN (8x8) package, utilizing surface mount technology for efficient board integration. It requires a supply voltage between 4.75V and 5.25V, drawing a current of 230mA. This device is packaged on a Tape & Reel (TR). Its robust performance characteristics make it a valuable component in wireless infrastructure, mobile devices, and base station equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 1.92GHz ~ 1.98GHz |
| RF Type | Cellular |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 37.5dB |
| Current - Supply | 230mA |
| Noise Figure | 0.9dB |
| P1dB | -12.5dBm |
| Test Frequency | 1.95GHz |

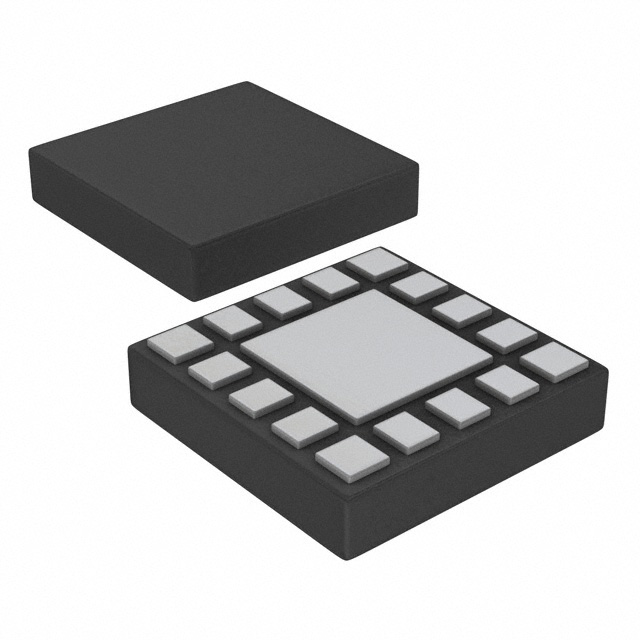

| Supplier Device Package | 16-HLQFN (8x8) |
