BGS8L5X
IC RF AMP CELL 703-960MHZ 6XSONManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More

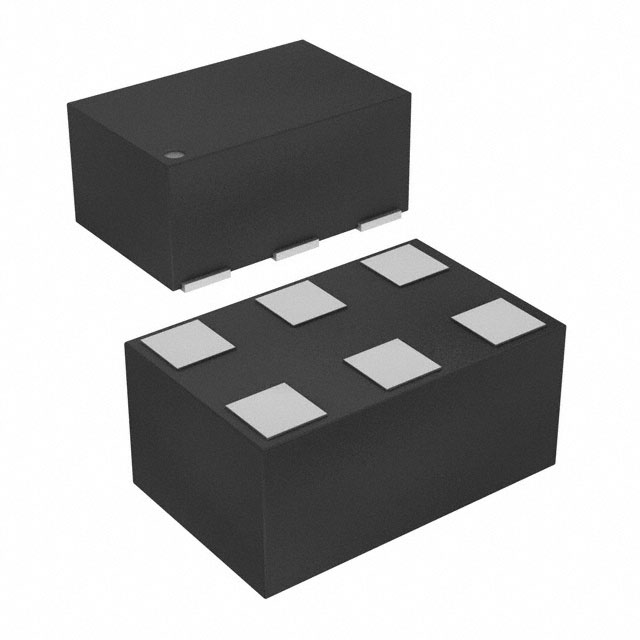

The NXP USA Inc. BGS8L5X is a high-performance RF amplifier designed for cellular and LTE applications. Operating within the 703MHz to 960MHz frequency range, this component delivers a typical gain of 13.6dB at 850MHz. With a low noise figure of 0.7dB and a P1dB compression point of 6dBm at 850MHz, the BGS8L5X is well-suited for demanding RF front-end designs. This surface-mount device is housed in a compact 6-XSON (1.1x0.7) package, facilitating efficient board space utilization. It operates from a supply voltage range of 1.5V to 3.1V, drawing a typical supply current of 4.5mA. The BGS8L5X is commonly employed in mobile infrastructure, wireless communication systems, and IoT devices requiring robust RF amplification. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN |
| Mounting Type | Surface Mount |
| Frequency | 703MHz ~ 960MHz |
| RF Type | Cellular, LTE |
| Voltage - Supply | 1.5V ~ 3.1V |
| Gain | 13.6dB |
| Current - Supply | 4.5mA |
| Noise Figure | 0.7dB |
| P1dB | 6dBm |
| Test Frequency | - |
| Supplier Device Package | 6-XSON (1.1x0.7) |
