BGA7130,118
IC AMP GPS 400MHZ-2.7GHZ 8HVSONManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More

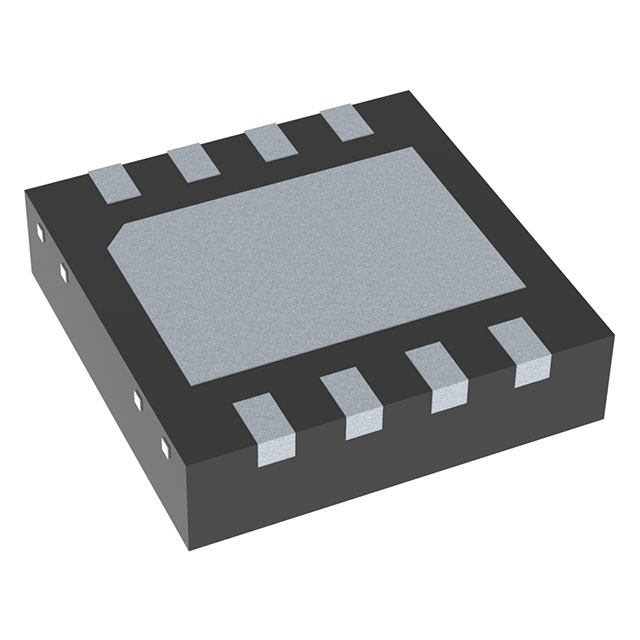

NXP USA Inc. BGA7130-118 is a general-purpose RF amplifier featuring a frequency range of 400MHz to 2.7GHz. This component offers a typical gain of 12dB at 2.14GHz, a noise figure of 5dB, and a P1dB output power of 30dBm. It operates with a supply voltage range of 4.75V to 5.25V and draws a supply current of 450mA. The BGA7130-118 is housed in an 8-HVSON (3x3) package with an exposed pad, designed for surface mounting. This device is suitable for applications in wireless infrastructure, satellite communications, and defense systems. It is supplied on a tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 2.7GHz |
| RF Type | General Purpose |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 12dB |
| Current - Supply | 450mA |
| Noise Figure | 5dB |
| P1dB | 30dBm |
| Test Frequency | 2.14GHz |
| Supplier Device Package | 8-HVSON (3x3) |
