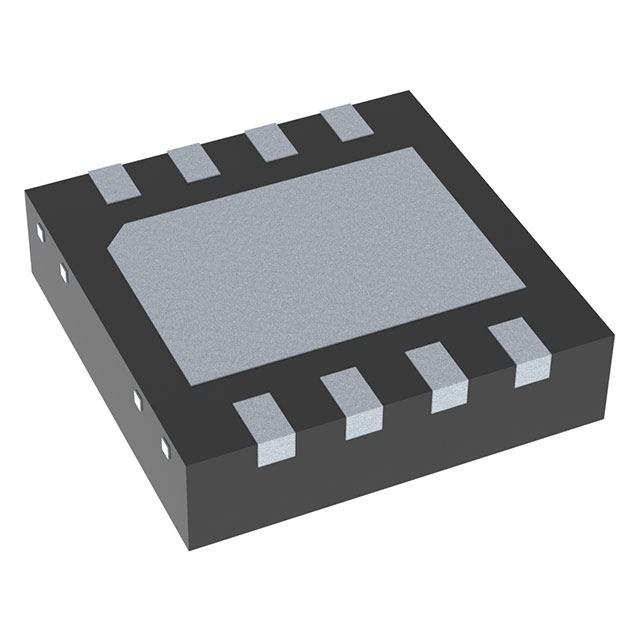

BGA6130,118
IC AMP ISM 400MHZ-2.7GHZ 8HVSONManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
The NXP USA Inc. BGA6130-118 is a versatile RF amplifier designed for high-performance wireless applications. This electronic component operates across a broad frequency range of 400MHz to 2.7GHz, making it suitable for Industrial, Scientific, and Medical (ISM) band applications. It delivers a typical gain of 14dB to 17dB at a test frequency of 915MHz, with a P1dB of 29dBm ensuring robust output power. The component features a low noise figure of 4dB, crucial for maintaining signal integrity in sensitive receiver chains. Powering the device requires a supply voltage of 3.6V, drawing a supply current of 70mA. The BGA6130-118 is supplied in an 8-HVSON (3x3) package, facilitating surface mount assembly. It is delivered in Tape & Reel (TR) packaging. This amplifier finds utility in a range of industries including wireless infrastructure, automotive, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-VFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 400MHz ~ 2.7GHz |
| RF Type | ISM |
| Voltage - Supply | 3.6V |
| Gain | 14dB ~ 17dB |
| Current - Supply | 70mA |
| Noise Figure | 4dB |
| P1dB | 29dBm |
| Test Frequency | 915MHz |
| Supplier Device Package | 8-HVSON (3x3) |
Request a Quote
