BGA3021Y
IC RF AMP CATV 40MHZ-1.2GHZ 8HSOManufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More
NXP USA Inc. BGA3021Y RF Amplifier. This component is a high-performance RF amplifier designed for CATV applications, covering a wide frequency range from 40MHz to 1.2GHz. It features a typical gain of 16dB and a noise figure of 5.5dB at its test frequency. The output P1dB is rated at 29dBm, indicating robust linearity for signal transmission. Operating from a supply voltage of 4.75V to 5.25V, the BGA3021Y draws a supply current of 350mA. It is provided in an 8-HSO (8-SOIC Exposed Pad) package for efficient surface mounting and thermal management. This device is suitable for use in broadband communication systems and other demanding RF infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

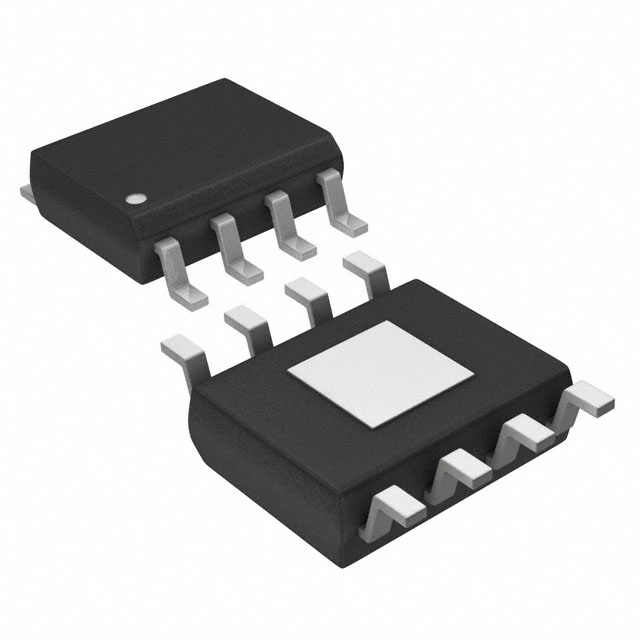

| Package / Case | 8-SOIC (0.154"", 3.90mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Frequency | 40MHz ~ 1.2GHz |
| RF Type | CATV |
| Voltage - Supply | 4.75V ~ 5.25V |
| Gain | 16dB |
| Current - Supply | 350mA |
| Noise Figure | 5.5dB |
| P1dB | 29dBm |
| Test Frequency | - |
| Supplier Device Package | 8-HSO |
Request a Quote
