BGA3018,115
IC RF AMP CATV 5MHZ-1GHZ SOT89-3Manufacturer: NXP USA Inc.
Categories: RF Amplifiers
Quality Control: Learn More

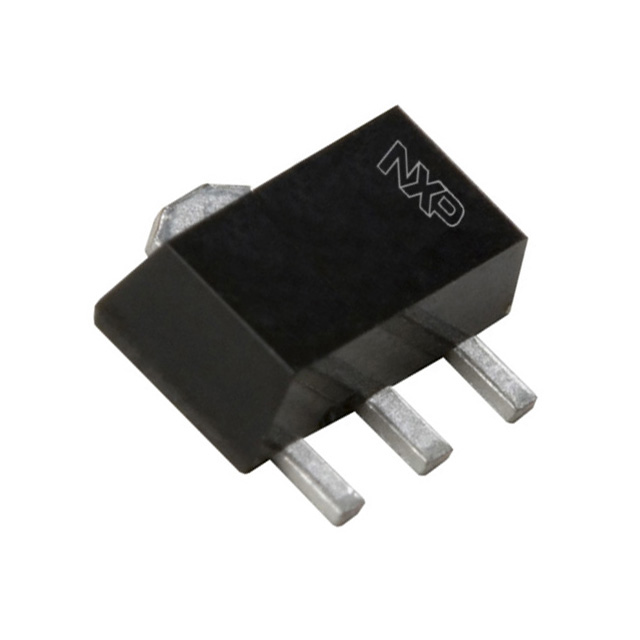

NXP USA Inc. BGA3018-115 RF Amplifier. This surface mount component operates across a frequency range of 5MHz to 1GHz, specifically designed for CATV applications. It provides a typical gain of 18dB at 1GHz, with a noise figure of 2.5dB and a P1dB output power of 18dBm. The device operates from a supply voltage of 5V to 8V, drawing a supply current of 75mA. The BGA3018-115 is supplied in a SOT-89-3 package, also referred to as TO-243AA, and is provided on tape and reel. This component is utilized in broadband communication systems and cable television infrastructure.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Mounting Type | Surface Mount |
| Frequency | 5MHz ~ 1GHz |
| RF Type | CATV |
| Voltage - Supply | 5V ~ 8V |
| Gain | 18dB |
| Current - Supply | 75mA |
| Noise Figure | 2.5dB |
| P1dB | 18dBm |
| Test Frequency | 1GHz |
| Supplier Device Package | SOT-89-3 |
Request a Quote
