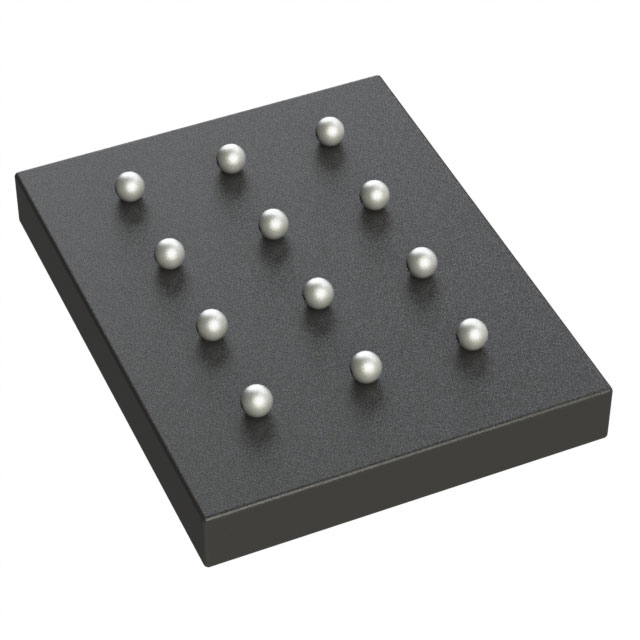

PCF85263AUKZ
IC RTC CLK/CALENDAR I2C 12WLCSPManufacturer: NXP USA Inc.
Categories: Real Time Clocks
Quality Control: Learn More
The NXP USA Inc. PCF85263AUKZ is a Real Time Clock (RTC) IC with clock and calendar functionality, utilizing an I2C interface. This component is designed for surface mount applications within a 12-WLCSP package, measuring 1.19x0.94. It operates across a wide temperature range of -40°C to 85°C (TA) and supports supply voltages from 0.9V to 5.5V, with a separate battery voltage range of 0.9V to 5.5V. The PCF85263AUKZ features include an alarm, leap year calculation, and a watchdog timer, with timekeeping current consumption as low as 0.885µA at 3.3V. Supported date formats include YY-MM-DD-dd, and time formats are HH:MM:SS:hh (12/24 hr). This versatile RTC IC finds application in various markets including consumer electronics, industrial automation, and automotive systems. It is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Memory Size | - |
| Interface | I2C |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 0.9V ~ 5.5V, 1.8V ~ 5.5V |
| Time Format | HH:MM:SS:hh (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 12-WLCSP (1.19x0.94) |
| Voltage - Supply, Battery | 0.9V ~ 5.5V |
| Current - Timekeeping (Max) | 0.885µA @ 3.3V |
| Programmable | Not Verified |
