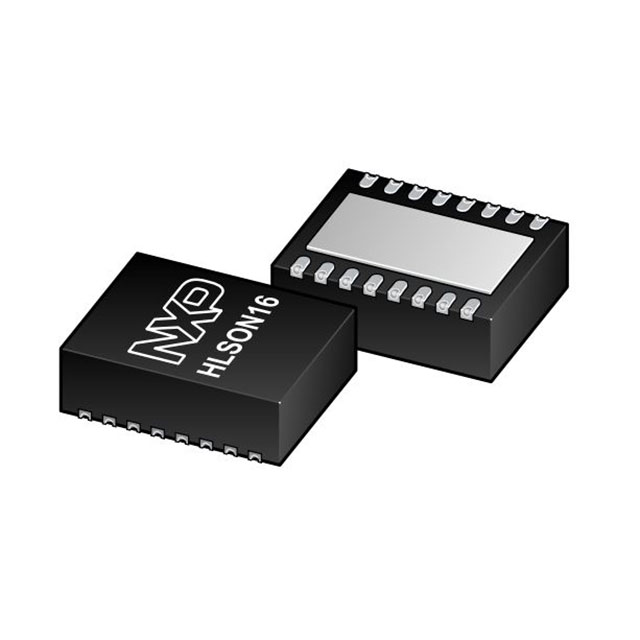

PCF2131TFY
IC RTC CLK/CALENDAR I2C 16HLSONManufacturer: NXP USA Inc.
Categories: Real Time Clocks
Quality Control: Learn More
Real Time Clock (RTC) IC Clock/Calendar 8B I2C, SPI 16-LFDFN Exposed Pad
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 16 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Alarm, Leap Year, SRAM, Watchdog Timer |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-LFDFN Exposed Pad |
| Mounting Type | Surface Mount, Wettable Flank |
| Memory Size | 8B |
| Interface | I2C, SPI |
| Type | Clock/Calendar |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.2V ~ 5.5V |
| Time Format | HH:MM:SS:hh (12/24 hr) |
| Date Format | YY-MM-DD-dd |
| Supplier Device Package | 16-HLSON (4.5x3.5) |
| Voltage - Supply, Battery | 1.2V ~ 5.5V |
| Current - Timekeeping (Max) | 770nA ~ 2.135µA @ 1.2V ~ 5.5V |
| Programmable | Not Verified |
