MPXM2102A
SENSOR 14.5PSIA .04V 5MPAKManufacturer: NXP USA Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More

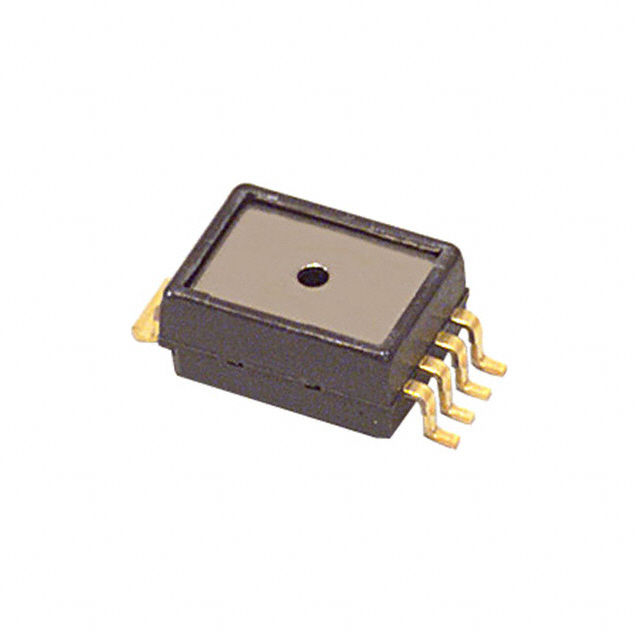

NXP USA Inc. MPXM2102A is an absolute pressure sensor featuring a 5-MPAK package for surface mount applications. This component is designed for accurate pressure measurement up to 14.5 PSI (100 kPa) with a maximum pressure rating of 58.02 PSI (400 kPa). The sensor utilizes a Wheatstone bridge output, providing a voltage range of 0 mV to 40 mV when supplied with 10V. Enhanced with temperature compensation and a gull wing termination style, it ensures reliable performance across an operating temperature range of -40°C to 125°C. This sensor is suitable for applications in industrial automation and automotive systems.
Additional Information
Series: MPXM2102RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 5-SMD Module |
| Output Type | Wheatstone Bridge |
| Mounting Type | Surface Mount |
| Output | 0 mV ~ 40 mV (10V) |
| Operating Pressure | 14.5PSI (100kPa) |
| Pressure Type | Absolute |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 10V ~ 16V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 5-MPAK |
| Port Style | No Port |
| Maximum Pressure | 58.02PSI (400kPa) |
