MPXHZ6130A6U
SENSOR 18.85PSIA 4.8V 8SSOPManufacturer: NXP USA Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
NXP USA Inc. MPXHZ6130A6U is a pressure sensor designed for applications requiring precise absolute pressure measurement. This component, part of the MPXHZ6130A series, offers an operating pressure range of 15 kPa to 130 kPa (2.18 PSI to 18.85 PSI) with an accuracy of ±1.5%. The sensor provides an analog voltage output from 0.2 V to 4.8 V, varying linearly with pressure. It features temperature compensation for stable performance across its operating temperature range of -40°C to 125°C. The MPXHZ6130A6U is housed in an 8-SSOP package with gull-wing termination, suitable for surface mounting. Typical applications include automotive systems, industrial controls, and medical instrumentation. The device operates with a supply voltage of 4.75 V to 5.25 V.
Additional Information
Series: MPXHZ6130ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.2 V ~ 4.8 V |
| Operating Pressure | 2.18PSI ~ 18.85PSI (15kPa ~ 130kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SSOP |
| Port Style | No Port |
| Maximum Pressure | 58.02PSI (400kPa) |
Request a Quote
Clients Also Buy

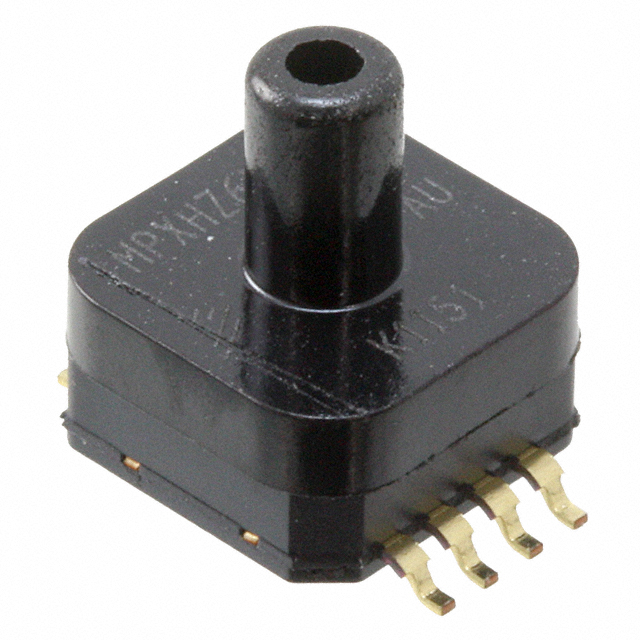

MPXHZ6130AC6U
