MPXH6300A6U
SENSOR 44.09PSIA 4.9V 8SSOPManufacturer: NXP USA Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
NXP USA Inc. MPXH6300A6U is an absolute pressure sensor with an operating range of 2.9 PSI to 44.09 PSI (20 kPa to 304 kPa). This component, part of the MPXH6300A series, features temperature compensation and delivers an analog voltage output from 0.3 V to 4.9 V. It is designed for surface mounting with a gull wing termination style and comes in an 8-SSOP package. The sensor operates within a supply voltage range of 4.74 V to 5.46 V and maintains an accuracy of ±1.5% across its specified pressure and temperature ranges of -40°C to 125°C. Applications for this device include automotive and industrial systems requiring precise absolute pressure monitoring.
Additional Information
Series: MPXH6300ARoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 8-SOIC (0.295"", 7.50mm Width) |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.3 V ~ 4.9 V |
| Operating Pressure | 2.9PSI ~ 44.09PSI (20kPa ~ 304kPa) |
| Pressure Type | Absolute |
| Accuracy | ±1.5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | Gull Wing |
| Voltage - Supply | 4.74V ~ 5.46V |
| Port Size | - |
| Applications | Board Mount |
| Supplier Device Package | 8-SSOP |
| Port Style | No Port |
| Maximum Pressure | 174.05PSI (1200kPa) |
Request a Quote
Clients Also Buy
MPXH6300A6T1
SENSOR 44.09PSIA 4.9V 8SSOP
MPXH6300AC6U
SENSOR 44.09PSIA 0.13"" 4.9V SSOP

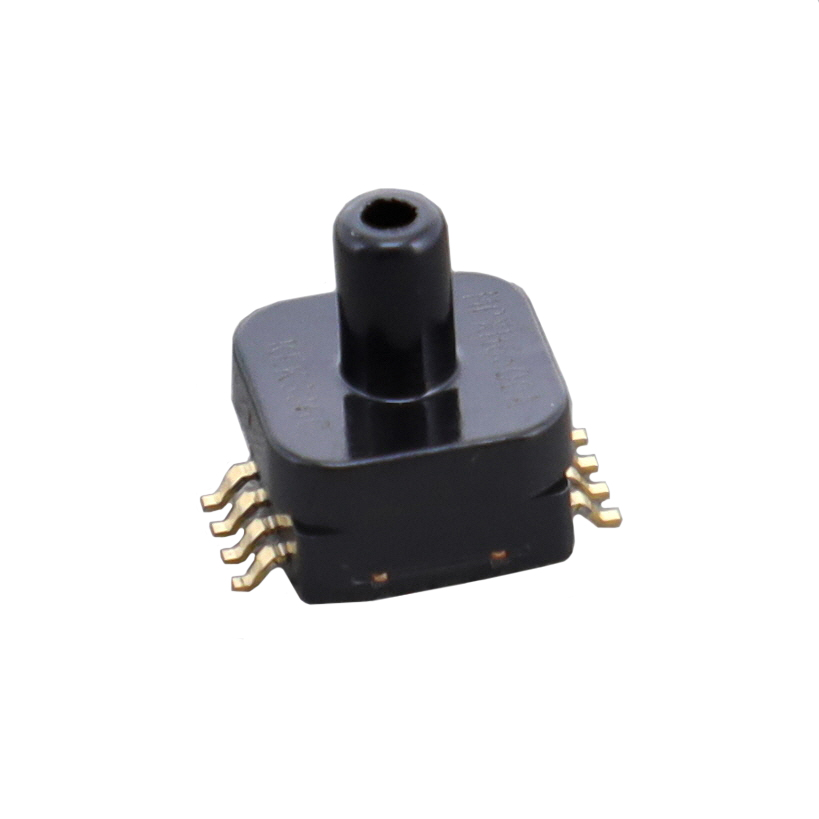

MPXH6300AC6T1
