MPX5010DP
SENSOR 1.45PSID 0.19"" 4.7VManufacturer: NXP USA Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
Pressure Sensor 1.45PSI (10kPa) Differential Male - 0.19"" (4.93mm) Tube, Dual 0.2 V ~ 4.7 V 6-SIP Module
Additional Information
Series: MPX5010RoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tray |
| Package / Case | 6-SIP Module |
| Output Type | Analog Voltage |
| Mounting Type | Through Hole |
| Output | 0.2 V ~ 4.7 V |
| Operating Pressure | 1.45PSI (10kPa) |
| Pressure Type | Differential |
| Accuracy | ±5% |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | PC Pin |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.19"" (4.93mm) Tube, Dual |
| Applications | Board Mount |
| Supplier Device Package | - |
| Port Style | Barbed |
| Maximum Pressure | 5.8PSI (40kPa) |
Request a Quote
Clients Also Buy
MPX5010D
SENSOR 1.45PSID 4.7V
MPX5010DP1
SENSOR 1.45PSID 0.19"" 4.7V

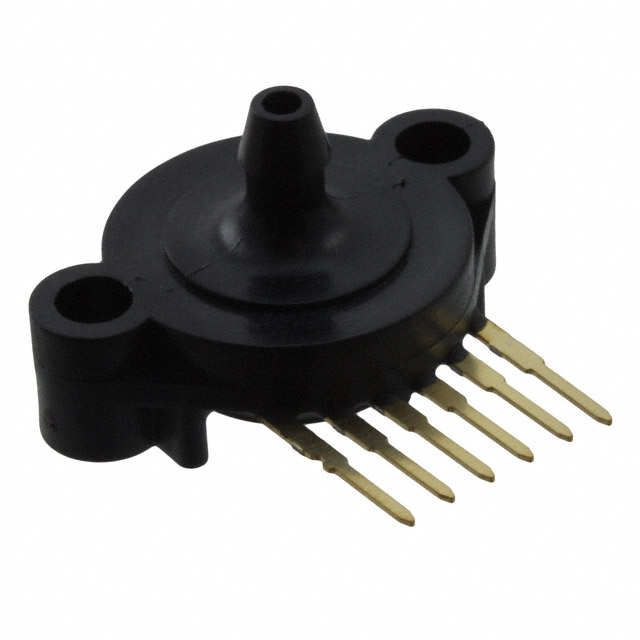

MPX5010GS
