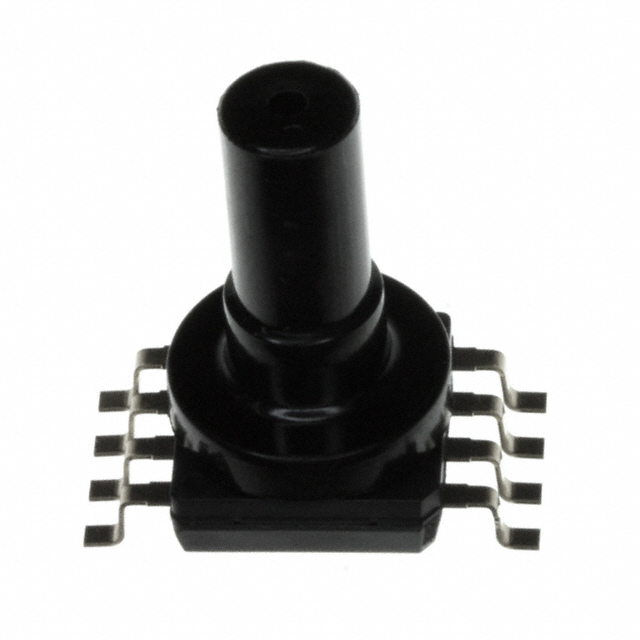

MPVZ5010GW6U
SENSOR 1.45PSIG 0.22"" 4.7V 8SOManufacturer: NXP USA Inc.
Categories: Pressure Sensors, Transducers
Quality Control: Learn More
NXP USA Inc. MPVZ5010G series vented gauge pressure sensor, part number MPVZ5010GW6U. This analog output sensor operates within a 4.75V to 5.25V supply voltage range, providing a calibrated output from 0.2V to 4.7V. It is designed for measuring positive gauge pressures up to 1.45 PSI (10 kPa), with a maximum overpressure rating of 5.8 PSI (40 kPa). The device features temperature compensation and is housed in an 8-SO surface-mount package with a gull-wing lead form and a top port for a 0.22-inch (5.59mm) tube connection. The MPVZ5010GW6U is suitable for board mount applications and operates across an ambient temperature range of -40°C to 125°C. Industries utilizing this component include automotive and industrial automation.
Additional Information
Series: MPVZ5010GRoHS Status: ROHS3 CompliantManufacturer Lead Time: 52 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tube |
| Package / Case | 8-SMD, Gull Wing, Top Port |
| Output Type | Analog Voltage |
| Mounting Type | Surface Mount |
| Output | 0.2 V ~ 4.7 V |
| Operating Pressure | 1.45PSI (10kPa) |
| Pressure Type | Vented Gauge |
| Accuracy | - |
| Operating Temperature | -40°C ~ 125°C |
| Termination Style | SMD (SMT) Tab |
| Voltage - Supply | 4.75V ~ 5.25V |
| Port Size | Male - 0.22"" (5.59mm) Tube |
| Applications | Board Mount |
| Supplier Device Package | 8-SO |
| Port Style | Barbless |
| Maximum Pressure | 5.8PSI (40kPa) |
