NX5P2553GUZ

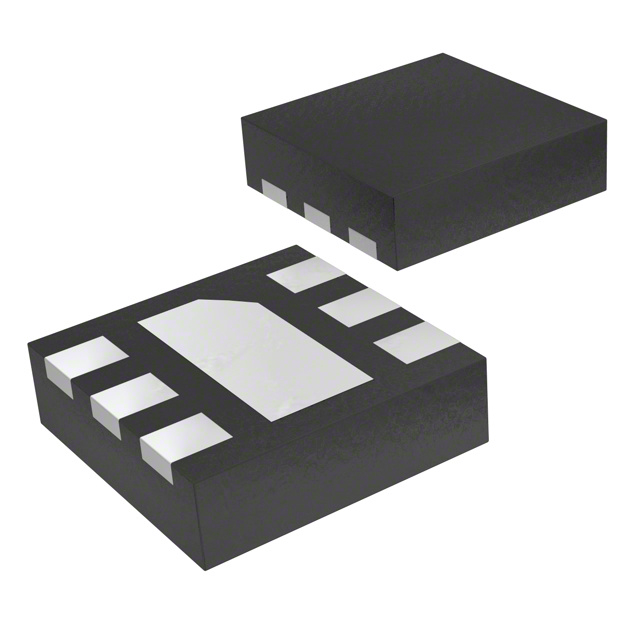

IC PWR SWITCH N-CHAN 1:1 6HXSONManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. NX5P2553GUZ is a versatile 1.5A N-Channel Power Switch/Driver designed for high-side load control. This component, housed in a compact 6-HXSON (1.6x1.6) package, offers a 1:1 input-to-output ratio and features adjustable current limiting and over-temperature fault protection, alongside Undervoltage Lockout (UVLO). Its Non-Inverting input and ON/OFF interface facilitate straightforward integration. Key operational parameters include a typical Rds On of 100mOhm and support for load voltages from 2.5V to 5.5V. Manufactured by NXP USA Inc., this general-purpose switch is suitable for applications requiring reliable power distribution, such as in consumer electronics and industrial control systems. The device is supplied on Tape & Reel (TR) and operates within a temperature range of -40°C to 85°C. It includes a status flag for output monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | Status Flag |
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-XFDFN Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 100mOhm |
| Input Type | Non-Inverting |
| Voltage - Load | 2.5V ~ 5.5V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 6-HXSON (1.6x1.6) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
