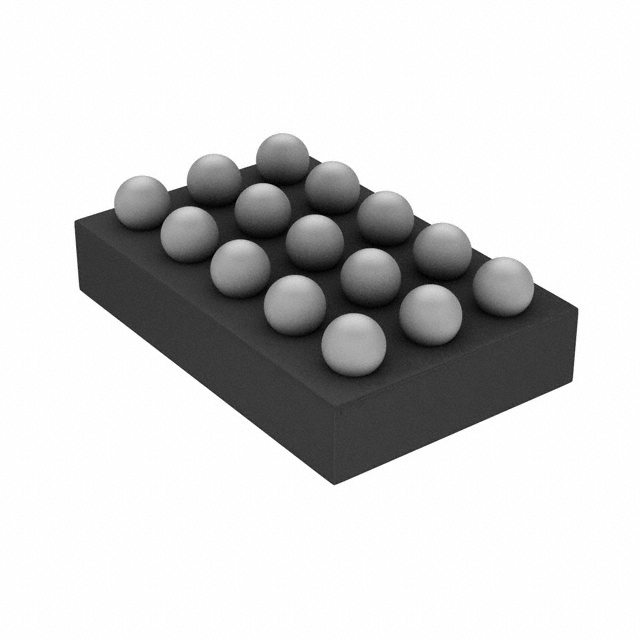

NX20P5090UKAZ
IC PWR SWITCH N-CHAN 1:1 15WLCSPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 N-Channel 5A 15-WLCSP (2.56x1.54)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 15-UFBGA, WLCSP |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | ON/OFF |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 30mOhm |
| Input Type | - |
| Voltage - Load | 2.5V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 15-WLCSP (2.56x1.54) |
| Fault Protection | Over Temperature, Over Voltage, Reverse Current, UVLO |
