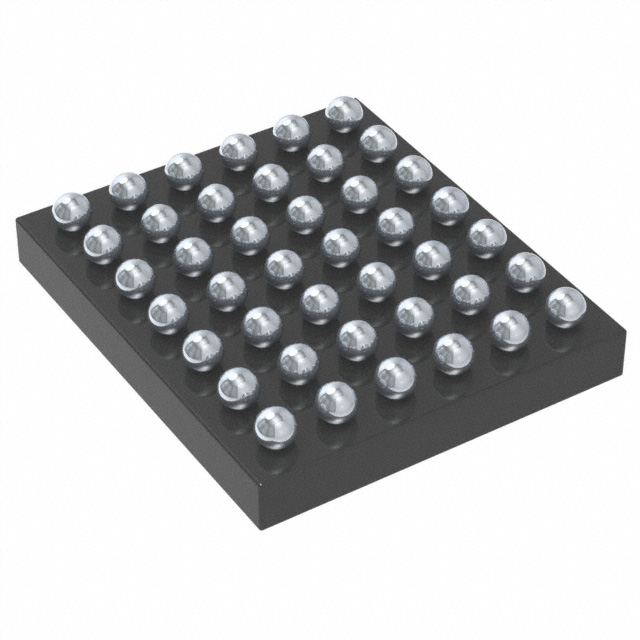

NX20P3483UKAZ
IC PWR SWITCH 1:1 42WLCSPManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
Power Switch/Driver 1:1 5A 42-WLCSP (2.91x2.51)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 42-UFBGA, WLCSP |
| Output Type | - |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | I2C |
| Switch Type | USB Switch |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Output Configuration | - |
| Rds On (Typ) | 28mOhm |
| Input Type | - |
| Voltage - Load | 2.8V ~ 20V |
| Voltage - Supply (Vcc/Vdd) | - |
| Current - Output (Max) | 5A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 42-WLCSP (2.91x2.51) |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, Reverse Current, UVLO |
