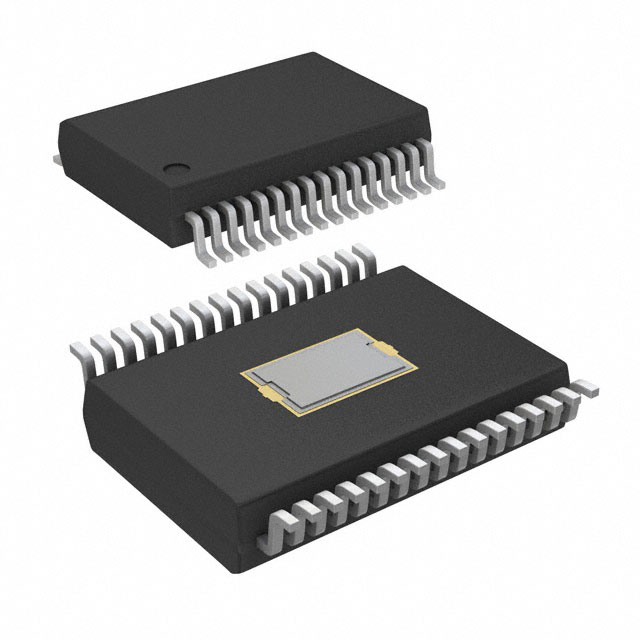

MC50XS4200CEKR2
IC PWR SWITCH N-CHAN 1:1 32SOICManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC50XS4200CEKR2 is a dual-channel, N-channel high-side power switch designed for general-purpose applications. With a maximum output current of 1.65A per channel and a low on-resistance of 50mOhm (typ), this device offers efficient power distribution. Key features include open load detection and over-temperature fault protection, along with slew rate control for managed turn-on characteristics. The interface is SPI, and it operates within a voltage range of 8V to 36V for the load and 3V to 5.5V for the supply. This component is suitable for surface mounting and comes in a 32-SOIC-EP package, supplied on tape and reel. Its robust design finds application in automotive and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 2 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 50mOhm |
| Input Type | - |
| Voltage - Load | 8V ~ 36V |
| Voltage - Supply (Vcc/Vdd) | 3V ~ 5.5V |
| Current - Output (Max) | 1.65A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Open Load Detect, Over Temperature |
