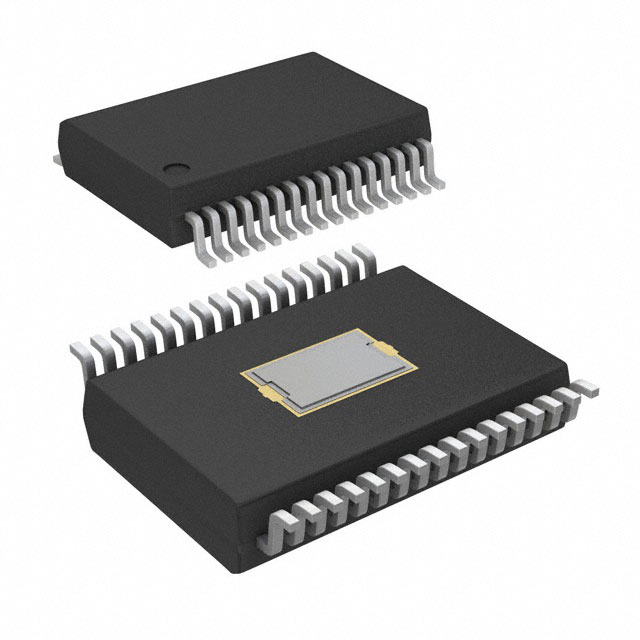

MC40XS6500CEKR2
HIGH-SIDE SWITCH 12V PENTA 40MOHManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC40XS6500CEKR2 is a high-side power switch designed for robust load management. This component features five N-channel outputs, each capable of delivering up to 3.9A with a typical on-resistance of 40mOhm. It offers comprehensive fault protection including fixed current limiting, open load detection, and over-temperature shutdown. The device operates from a 4.5V to 5.5V supply, with load voltages ranging from 7V to 18V. Control and configuration are managed via an SPI interface. Key features include slew rate control for optimized switching behavior. This device is commonly utilized in automotive applications, industrial automation, and power distribution systems requiring reliable and protected power switching. The MC40XS6500CEKR2 is supplied in a 32-SOIC-EP package on tape and reel, with an operating temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | CMOS |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 3.9A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
