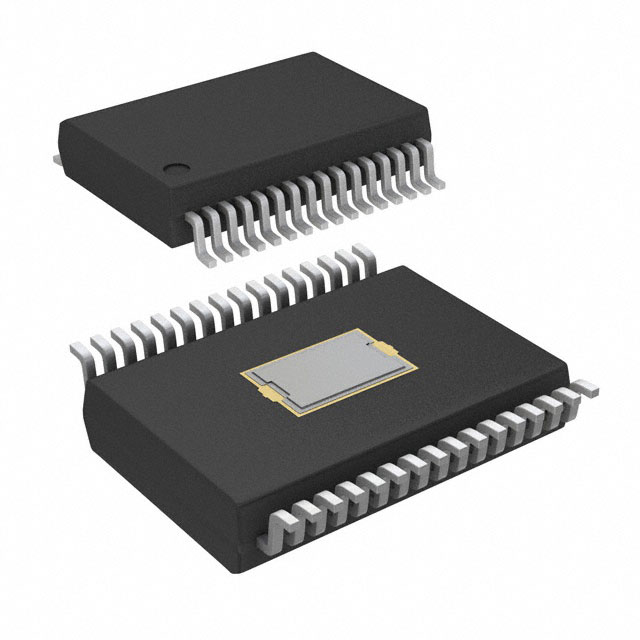

MC40XS6500CEK
HIGH-SIDE SWITCH 12V PENTA 40MOHManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
NXP USA Inc. MC40XS6500CEK is a high-side power switch featuring five N-channel outputs in a 32-SOIC-EP package. This device offers low on-resistance of 40mOhm (typical) and supports a load voltage range of 7V to 18V, with a quiescent current of 3.9A maximum per channel. Integrated fault protection includes fixed current limiting, open load detection, and over-temperature shutdown. The component utilizes an SPI interface for control and configuration, with slew rate control for managed output transitions. Designed for general-purpose switching applications, it is suitable for automotive and industrial automation environments. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled |
| Packaging | Tube |
| Package / Case | 32-SSOP (0.295"", 7.50mm Width) Exposed Pad |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 5 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Output Configuration | High Side |
| Rds On (Typ) | 40mOhm |
| Input Type | CMOS |
| Voltage - Load | 7V ~ 18V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | 3.9A |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 32-SOIC-EP |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature |
