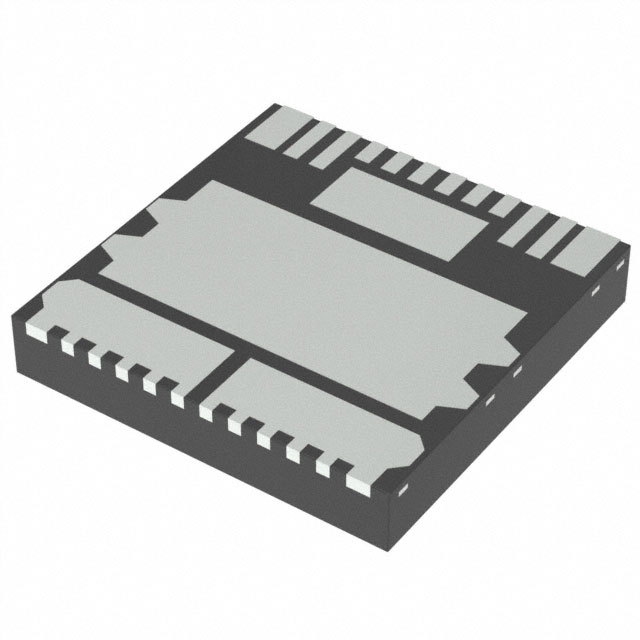

MC33982CHFK
IC PWR SWITCH N-CHAN 1:1 16QFNManufacturer: NXP USA Inc.
Categories: Power Distribution Switches, Load Drivers
Quality Control: Learn More
The NXP USA Inc. MC33982CHFK is a 1:1 N-Channel high-side power switch featuring an SPI interface. This device is housed in a 16-PQFN (12x12) package and offers a low on-resistance of 2mOhm typical. Designed for robust operation, it incorporates comprehensive fault protection including fixed current limiting, open load detection, over-temperature shutdown, and over-voltage protection. Key features include slew rate control for managed power-up and a watchdog timer for system reliability. The MC33982CHFK is suitable for demanding applications operating within a load voltage range of 6V to 27V and a supply voltage from 4.5V to 5.5V, with an extended operating temperature range of -40°C to 150°C (TJ). This component finds application in automotive and industrial power distribution systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | Slew Rate Controlled, Watchdog Timer |
| Packaging | Tray |
| Package / Case | 16-PowerQFN |
| Output Type | N-Channel |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Interface | SPI |
| Switch Type | General Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Output Configuration | High Side |
| Rds On (Typ) | 2mOhm |
| Input Type | - |
| Voltage - Load | 6V ~ 27V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Current - Output (Max) | - |
| Ratio - Input:Output | 1:1 |
| Supplier Device Package | 16-PQFN (12x12) |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
